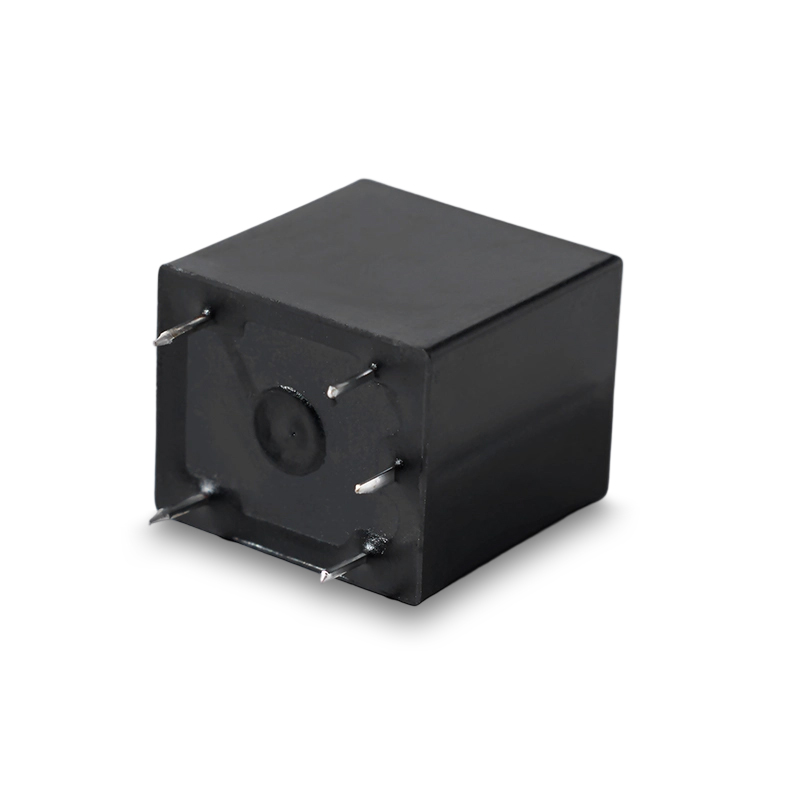

JRU 15A Small Size Electromagnetic Relay
- 15A switching capabilities
- 1 form A,1form B and 1 form C configuration
- 1.5KV Dielectric strength between coil and contacts
- 3000VA Max.Switching Power
- 15A switching capabilities
- 1 form A,1form B and 1 form C configuration
- 1.5KV Dielectric strength between coil and contacts
- 3000VA Max.Switching Power
CONTACT DATA
|
Contact arrangement |
1A/1B/1C |
|
Contact resistance |
100mΩ (at 1A 6VDC) |
|
Contact rating - AC Contact rating - DC |
1A：15A/250VAC 1B：12A/250VAC 1C：NO：15A/250VAC NC：12A/250VAC 1A：15A/28VDC 1B：12A/28VDC 1C：NO：15A/28VDC NC：12A/28VDC |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
500MΩ 500VDC |
|
Dielectric strength |
Between Coil&contact: 1500VAC, 1min. Between open contact: 1000VAC, 1min |
|
Operate time |
10 ms |
|
Release time |
5 ms |
|
Vibration resistance |
10-55Hz, DA 1.5mm |
|
Shock resistance |
Functional: 98 m/s2; Destructive: 980 m/s2 |
|
Humidity |
35％ ~ 85％RH |
|
Ambient Temp |
-40℃ ~ +70℃ |
|
Electrical life Mechanical life |
1×105 ops 1×107 ops |
COIL DATA
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
5 |
3.5 |
0.5 |
90 |
55.5 |
450 |
|
9 |
6.3 |
0.9 |
50 |
180 |
450 |
|
12 |
8.4 |
1.2 |
37.5 |
320 |
450 |
|
24 |
16.8 |
2.4 |
18.75 |
1280 |
450 |
|
48 |
33.6 |
4.8 |
9.37 |
5120 |
450 |
|
5 |
3.5 |
0.5 |
72 |
70 |
360 |
|
9 |
6.3 |
0.9 |
40 |
225 |
360 |
|
12 |
8.4 |
1.2 |
30 |
400 |
360 |
|
24 |
16.8 |
2.4 |
15 |
1600 |
360 |
|
48 |
33.6 |
4.8 |
7.5 |
6400 |
360 |
Notes:
1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRU-S-1-12-F-M-XX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRU |
S-Plastic sealed SH- Sealed |
1 |
3VDC-48VDC |
F: 0.45W D: 0.36W |
None: NO/NC M: NO B: NC |
Customer Special requirements |
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
|
Outline Dimensions |
PCB Layout (Bottom view) |
Wiring Diagram (Bottom View) |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Remark:
1) In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm; outline dimension﹥1mm and ≤5mm, Tolerance should be±0.3mm; outline dimension﹥5mm, tolerance should be ±0.4mm.
