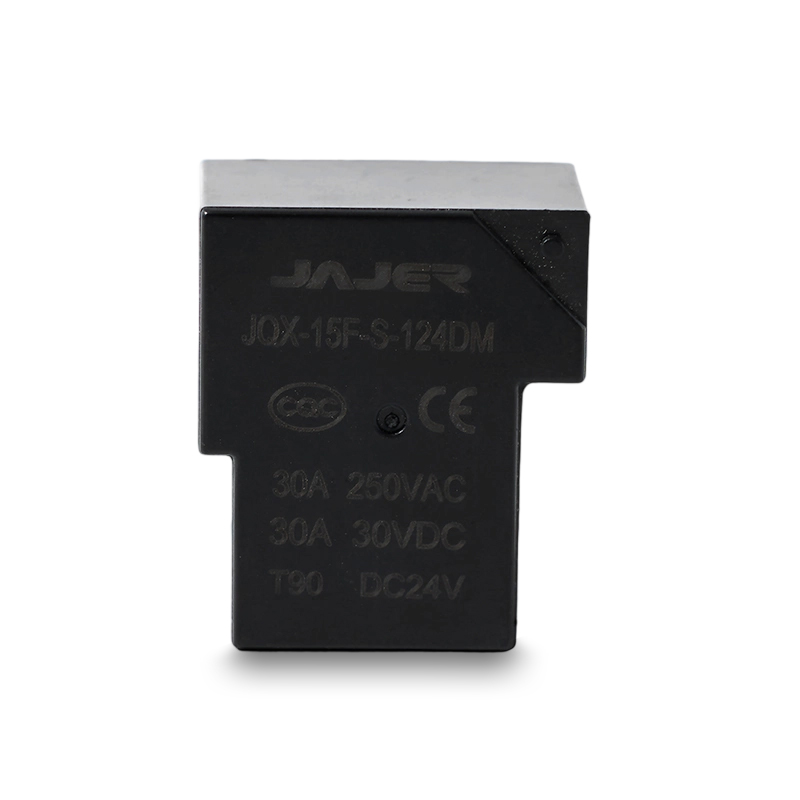

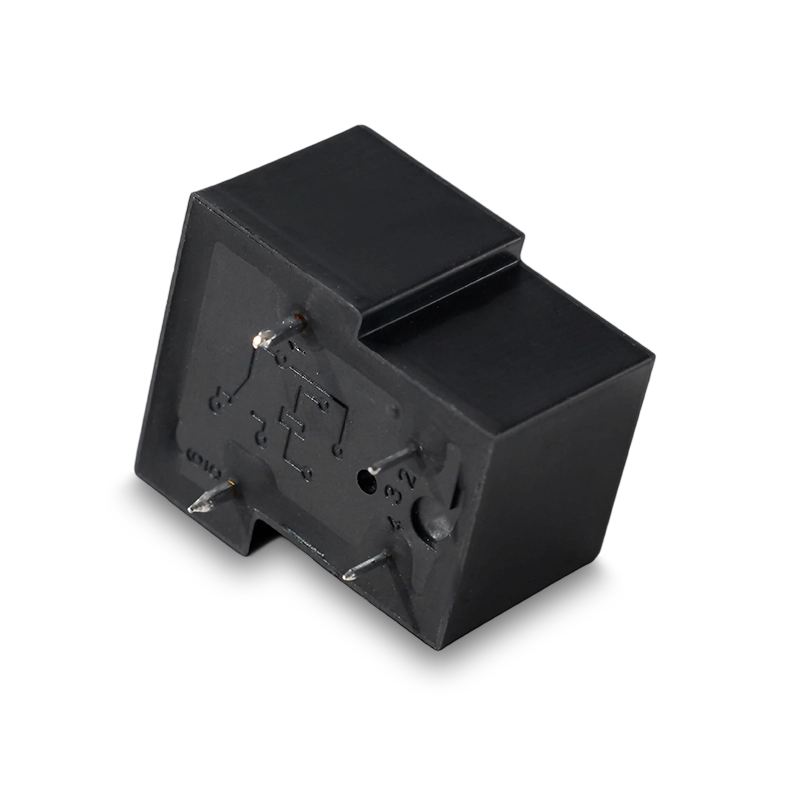

JRT T90 30A/40A High Power Electromagnetic Relay
-30A/40A switching capability
-1 Form A , and 1 Form C configuration
-2.5KV Dielectric strength between coil and contacts
-6000VA Max. Switching Power
-30A/40A switching capability
-1 Form A , and 1 Form C configuration
-2.5KV Dielectric strength between coil and contacts
-6000VA Max. Switching Power
CONTACT DATA
|
Contact arrangement |
1A、1B、1C |
|
Contact resistance |
100mΩ (at 1A 6VDC) |
|
Contact rating - AC Contact rating - DC |
1A：30A/250VAC 1B：20A/250VAC 1C：NO：20A/250VAC NC：10A/250VAC 1A：30A/28VDC 1B：20A/28VDC 1C：NO：20A/28VDC NC：10A/28VDC |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
1000MΩ 500VDC |
|
Dielectric strength |
Between Coil & contact: 2500VAC, 1min. Between open contact: 1500VAC, 1min. |
|
Operate time |
15 ms |
|
Release time |
10 ms |
|
Vibration resistance |
10-55Hz, DA 1.5mm |
|
Shock resistance |
Functional: 100 m/s2; Destructive: 1000 m/s2 |
|
Humidity |
45％ ~ 85％RH |
|
Ambient Temp. |
-40℃ ~ +85℃ |
|
- Electrical life |
1×105 ops |
|
- Mechanical life |
1×107 ops |
COIL DATA
|
Rated voltage |
Pick-up Voltage |
Drop-out Voltage |
Rated Current |
Coil resistance |
Power |
|
(VDC) |
VDC (Max.) |
VDC (Min.) |
(mA±10％) |
(Ω±10％) |
(mW) |
|
5 |
3.75 |
0.5 |
186 |
27 |
900 |
|
6 |
4.5 |
0.6 |
150 |
40 |
900 |
|
9 |
6.75 |
0.9 |
101 |
89 |
900 |
|
12 |
9 |
1.2 |
76 |
160 |
900 |
|
18 |
13.5 |
1.8 |
51 |
356 |
900 |
|
24 |
18 |
2.4 |
38 |
634 |
900 |
|
36 |
27 |
3.6 |
25.2 |
1426 |
900 |
|
48 |
36 |
4.8 |
19 |
2534 |
900 |
|
110 |
82.5 |
11.0 |
8.3 |
13310 |
900 |
Notes:
1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRU-S-1-12-F-M-XX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRU |
S-Plastic sealed SH- Sealed |
1 |
3VDC-48VDC |
F: 0.45W D: 0.36W |
None: NO/NC M: NO B: NC |
Customer Special requirements |
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
|
Outline Dimensions |
PCB Layout (Bottom view) |
Wiring Diagram (Bottom View) |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Remark:
1) In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm; outline dimension﹥1mm and ≤5mm, Tolerance should be±0.3mm; outline dimension﹥5mm, tolerance should be ±0.4mm.
