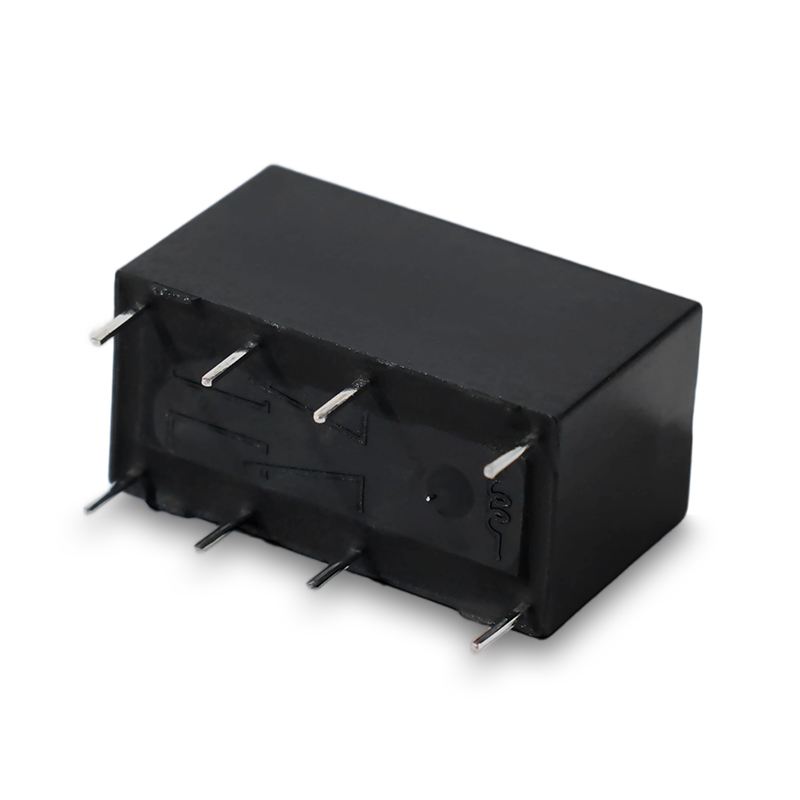

JRC-19F 4078F HK19F Small Signal Relay
- 2C configuration
- Subminiature size 20.2*10*11.5 mm (L x W x H)
- High sensitivity type and standard type available
- DIL pitch terminals
- 2C configuration
- Subminiature size 20.2*10*11.5 mm (L x W x H)
- High sensitivity type and standard type available
- DIL pitch terminals
CONTACT DATA
|
Contact form |
2C |
|
Contact resistance （Initial） |
100mΩ |
|
Rated load |
1A/ 120VAC 2A / 24VDC |
|
Max. switching voltage |
240VAC/60VDC |
|
Max. carrying current |
2A |
|
Max. switching capacity |
40W or 120VA |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
1000MΩ 500VDC |
|
Dielectric strength |
1000VAC, between coil to contact 500VAC, between open contacts |
|
Operate time |
Max. 6 ms |
|
Release time |
Max. 4 ms |
|
Vibration resistance |
10-55Hz, at DA of 1.5mm |
|
Shock resistance |
Functional: 20G;.Destructive 100G |
|
Humidity |
40％ ~ 85％RH |
|
Ambient Temp. |
-40℃ ~ +70℃ |
|
Electrical life Mechanical life |
1×105 ops (at rated coil voltage) 1×107 ops |
COIL DATA(150mW)
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
50 |
60 |
150 |
|
5 |
3.75 |
0.5 |
30 |
167 |
150 |
|
6 |
4.5 |
0.6 |
25 |
240 |
150 |
|
9 |
6.75 |
0.9 |
16.07 |
540 |
150 |
|
12 |
9 |
1.2 |
12.5 |
960 |
150 |
|
24 |
18 |
2.4 |
6.25 |
3840 |
150 |
COIL DATA(200mW)
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
66.7 |
45 |
200 |
|
5 |
3.75 |
0.5 |
40 |
125 |
200 |
|
6 |
4.5 |
0.6 |
33.3 |
180 |
200 |
|
9 |
6.75 |
0.9 |
22.2 |
405 |
200 |
|
12 |
9 |
1.2 |
16.7 |
720 |
200 |
|
24 |
18 |
2.4 |
8.3 |
2880 |
200 |
COIL DATA(360mW/450mW)
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
150.00 |
20 |
450 |
|
5 |
3.75 |
0.5 |
89.3 |
55 |
450 |
|
6 |
4.5 |
0.6 |
75.00 |
80 |
450 |
|
9 |
6.75 |
0.9 |
50.00 |
180 |
450 |
|
12 |
9 |
1.2 |
37.50 |
320 |
450 |
|
24 |
18 |
2.4 |
18.75 |
1280 |
450 |
|
3 |
2.25 |
0.3 |
120 |
25 |
360 |
|
5 |
3.75 |
0.5 |
71.4 |
70 |
360 |
|
6 |
4.5 |
0.6 |
60 |
100 |
360 |
|
9 |
6.75 |
0.9 |
40.9 |
220 |
360 |
|
12 |
9 |
1.2 |
30 |
400 |
360 |
|
24 |
18 |
2.4 |
15 |
1600 |
360 |
ORDERING INFORMATION
JRC-19F-S-2-12-E-M-XXX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRC-19F |
S-Plastic sealed SH- Sealed |
2 |
3-24VDC |
S: 0.15W E: 0.2W D: 0.36W F: 0.45W |
None: NO/NC M: NO |
Customer special requirement |
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
View More
View More
View More
View More
View More
View More
