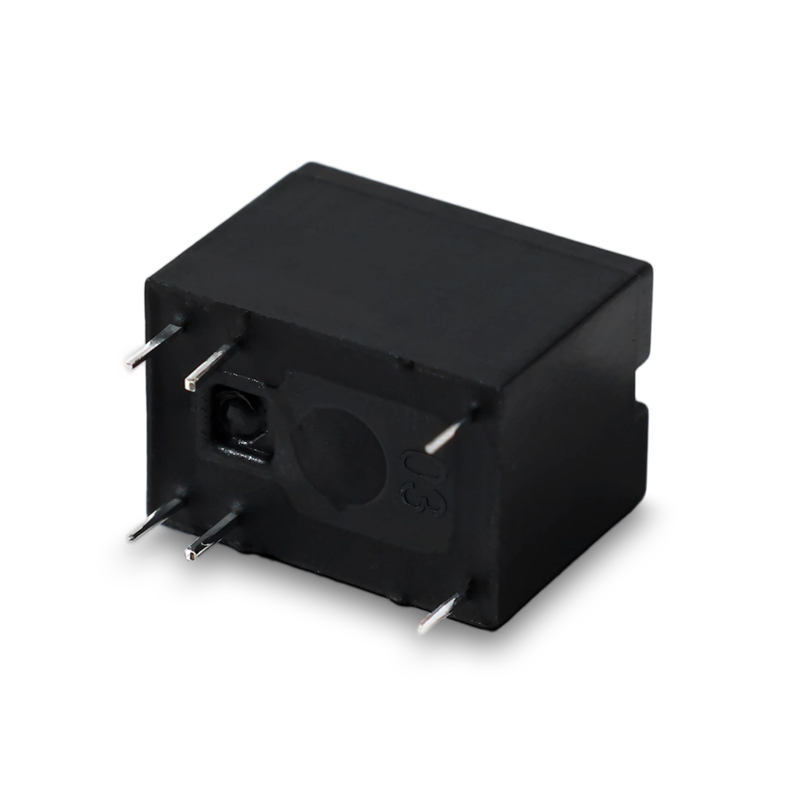

JRC-21F 6-Pin 5V/12V/24V Signal Relay
- 1C configuration
- Subminiature size: 15.5 × 10.5 × 11.5 mm (L × W × H)
- Power consumption of standard type: 360 mW
- Sensitivity type: 200 mW
- 1C configuration
- Subminiature size: 15.5 × 10.5 × 11.5 mm (L × W × H)
- Power consumption of standard type: 360 mW
- Sensitivity type: 200 mW
CONTACT DATA
|
Contact form |
1C |
|
Contact resistance （Initial） |
100mΩ |
|
Rated load |
1A/ 240VAC 30VDC 2A / 125VAC |
|
Max.switching voltage |
240VAC/30VDC |
|
Max.switching current |
2A |
|
Referencial min.applicable load |
10mA,6VDC |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
100MΩ 500VDC |
|
Dielectric strength |
500VAC,between coil to contact(1min) 500VAC,between open contacts (1min) |
|
Operate time |
Max. 8 ms |
|
Release time |
Max. 4 ms |
|
Vibration |
Endurance: 10-55Hz, DA 1.5mm |
|
Shock |
Endurance 10g.Error operation 50G |
|
Humidity |
45％ ~ 85％RH |
|
Ambient Temp. |
-25℃ ~ +70℃ |
|
Electrical life Mechanical life |
1×105 ops (at rated coil voltage) 5×106 ops (no load) |
COIL DATA ( 200mW)
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
66.67 |
45 |
200 |
|
5 |
3.75 |
0.5 |
40.00 |
125 |
200 |
|
6 |
4.5 |
0.6 |
33.33 |
180 |
200 |
|
9 |
6.75 |
0.9 |
22.22 |
405 |
200 |
|
12 |
9 |
1.2 |
16.67 |
720 |
200 |
|
24 |
18 |
2.4 |
8.33 |
2880 |
200 |
COIL DATA (360mW)
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
120.00 |
25 |
360 |
|
5 |
3.75 |
0.5 |
71.43 |
70 |
360 |
|
6 |
4.5 |
0.6 |
60.00 |
100 |
360 |
|
9 |
6.75 |
0.9 |
40.00 |
225 |
360 |
|
12 |
9 |
1.2 |
30.00 |
400 |
360 |
|
24 |
18 |
2.4 |
15.00 |
1600 |
360 |
COIL DATA ( 450mW)
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
150.00 |
20 |
450 |
|
5 |
3.75 |
0.5 |
90.00 |
55 |
450 |
|
6 |
4.5 |
0.6 |
75.00 |
80 |
450 |
|
9 |
6.75 |
0.9 |
50.00 |
180 |
450 |
|
12 |
9 |
1.2 |
37.50 |
320 |
450 |
|
24 |
18 |
2.4 |
18.75 |
1280 |
450 |
ORDERING INFORMATION
JRC-21F-S-1-12-E-M-XXX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRC-21F |
S-Plastic sealed SH- Sealed |
1 |
3-24VDC |
E: 0.2W L: 0.36W F: 0.45W |
None: NO/NC M: NO |
Customer special requirement |
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
 |
 |
 |
 |
