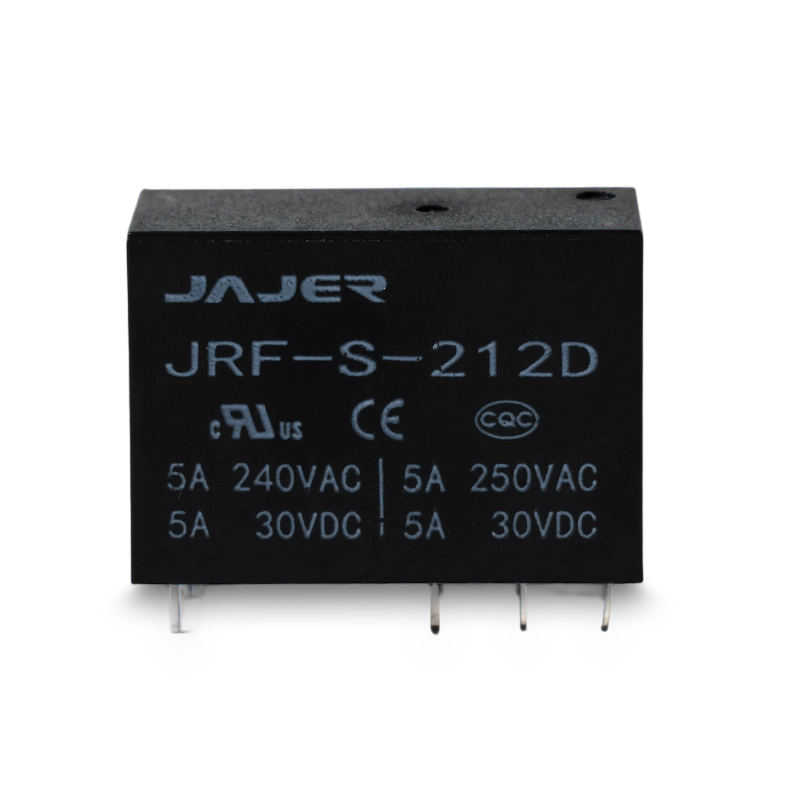

JRF 14F 12V DC Small Power Relay
- 2C/5A switching capability
- 5.0KV Dielectric strength between coil and contacts
- 1200VA Max. Switching Power
- 2C/5A switching capability
- 5.0KV Dielectric strength between coil and contacts
- 1200VA Max. Switching Power
CONTACT DATA
|
Contact arrangement |
,2A,2C |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact rating – AC Contact rating – DC |
2A：5A/240VAC 2C：NO：5A/240VAC NC：5A/240VAC 2A：5A/30VDC 2C：NO：5A/30VDC NC：5A/30VDC |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
1000MΩ 500VDC |
|
Dielectric strength |
Between Coil & contact: 5000VAC, 1min. Between open contact: 1000VAC, 1min. |
|
Operate time |
15 ms |
|
Release time |
8 ms |
|
Vibration resistance |
10-55Hz, DA 1.5mm |
|
Shock resistance |
Functional: 98m/s2; Destructive: 980m/s2 |
|
Humidity |
35％ ~ 85％RH |
|
Ambient Temp. |
-40℃ ~ +85℃ |
|
- Electrical life - Mechanical life |
1×105 ops 1×107 ops |
COIL DATA (standard power 0.54W)
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
180 |
17 |
540 |
|
5 |
3.75 |
0.5 |
108 |
46 |
540 |
|
6 |
4.5 |
0.6 |
90 |
67 |
540 |
|
9 |
6.75 |
0.9 |
60 |
150 |
540 |
|
12 |
9 |
1.2 |
45 |
267 |
540 |
|
18 |
13.5 |
1.8 |
30 |
600 |
540 |
|
24 |
18 |
2.4 |
22.5 |
1067 |
540 |
|
48 |
36 |
4.8 |
11.2 |
4267 |
540 |
COIL DATA ( higher power 0.72W )
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
240 |
12.5 |
720 |
|
5 |
3.75 |
0.5 |
144 |
35 |
720 |
|
6 |
4.5 |
0.6 |
120 |
50 |
720 |
|
9 |
6.75 |
0.9 |
80 |
112.5 |
720 |
|
12 |
9 |
1.2 |
60 |
200 |
720 |
|
18 |
13.5 |
1.8 |
40 |
450 |
720 |
|
24 |
18 |
2.4 |
30 |
800 |
720 |
|
48 |
36 |
4.8 |
15 |
3200 |
720 |
Notes:
1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRF-S-2-12-D-M-XX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRE(8A) JREA (12A) JREB(16A) |
S-Plastic sealed SH- Sealed |
1 pole 2 poles |
3-48VDC |
D: 0.4W |
None: NO/NC M: NO |
Customer special requirement |

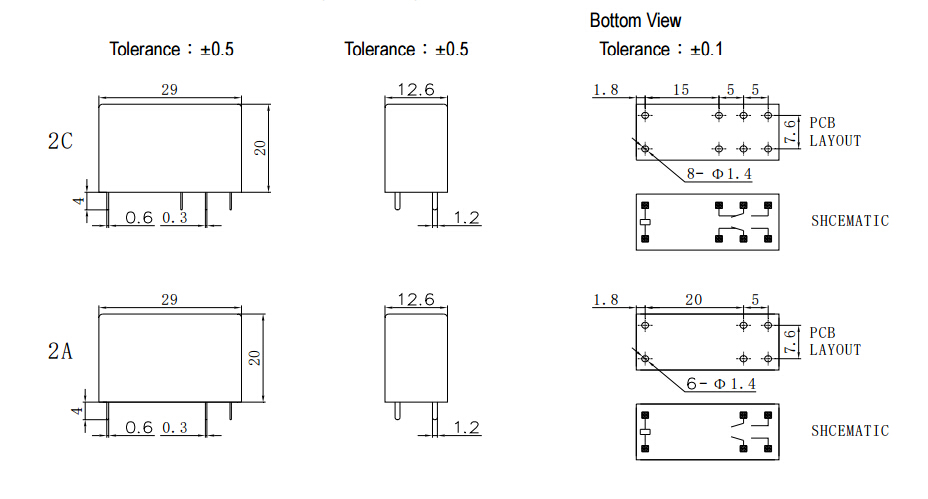

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
Tolerance±0.5
Bottom View
Tolerance±0.1
Remark:
1) In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm; outline dimension﹥1mm and ≤5mm, Tolerance should be±0.3mm; outline dimension﹥5mm, tolerance should be ±0.4mm.
