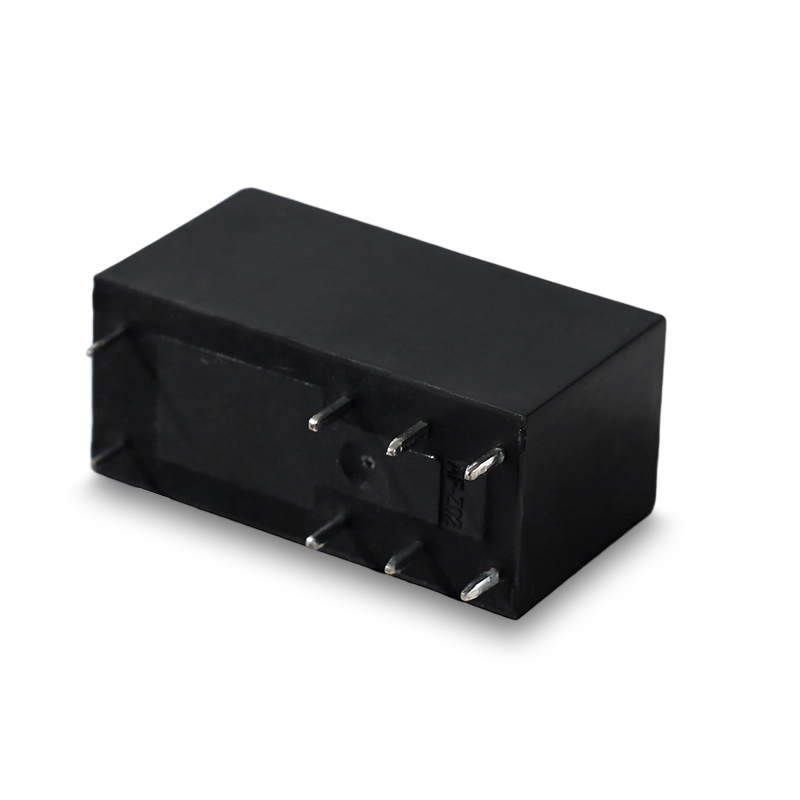

JRE 8-Pin Electronic Component Power Relay
- 8A/12A/16A switching capability
- 5KV Dielectric strength between coil and contacts
- 1A,1B,1C, 2A,2B, 2C configuration
- Size 29.5 x 12.7x 15.8(L x W x H)
- 8A/12A/16A switching capability
- 5KV Dielectric strength between coil and contacts
- 1A,1B,1C, 2A,2B, 2C configuration
- Size 29.5 x 12.7x 15.8(L x W x H)
CONTACT DATA
|
Contact form |
1C, 2C |
|
Contact resistance （Initial） |
100mΩ (at 1A 6VDC) |
|
Rated load |
1C:16A 240VAC/30VDC 12A 240VAC/30VDC 2C: 8A 240VAC/30VDC |
|
Max.Switching power |
1C:3000VA 2C:2000VA |
|
Contact material |
Ag Alloy |
CHARACTERISTICS
|
Insulation resistance |
1000MΩ 500VDC |
|
Dielectric strength |
5000VAC,1 min.between coil to contact 1000VAC,1 min.between open contact |
|
Operate time |
15 ms |
|
Release time |
8 ms |
|
Vibration resistance |
10-55Hz, DA 1.5mm |
|
Humidity |
5％ ~ 85％RH |
|
Ambiet Temp. |
-40℃ ~ +85℃ |
|
Electrical life Mechanical life |
1×105 ops (at rated coil voltage) 1×107 ops |
COIL DATA
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
5 |
3.5 |
0.5 |
80 |
62 |
400 |
|
6 |
4.5 |
0.6 |
67 |
90 |
400 |
|
9 |
6.75 |
0.9 |
44 |
202 |
400 |
|
12 |
9 |
1.2 |
33 |
360 |
400 |
|
18 |
12.5 |
1.8 |
22 |
810 |
400 |
|
24 |
18 |
2.4 |
17 |
1440 |
400 |
|
48 |
36 |
4.8 |
8 |
5760 |
400 |
Notes:
1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRE-S-2-12-D-M-XXX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRE(8A) JREA (12A) JREB(16A) |
S-Plastic sealed SH- Sealed |
1 pole 2 poles |
3-48VDC |
D: 0.4W |
None: NO/NC M: NO |
Customer special requirement |

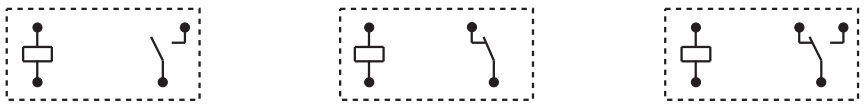

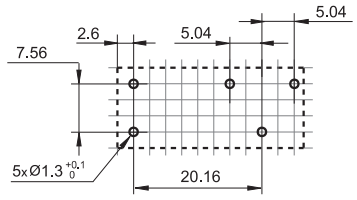

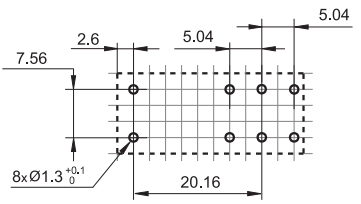

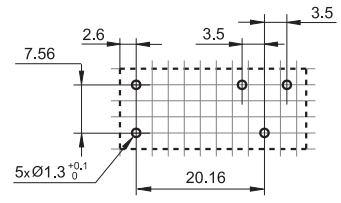

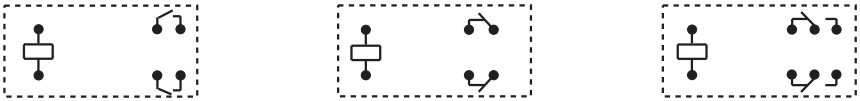

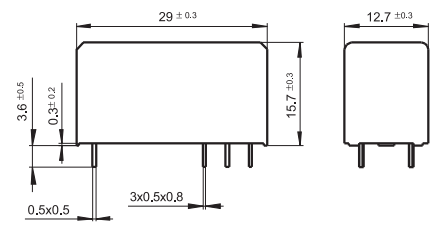

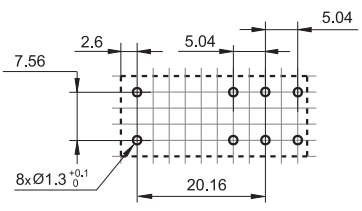

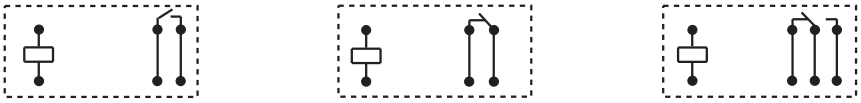

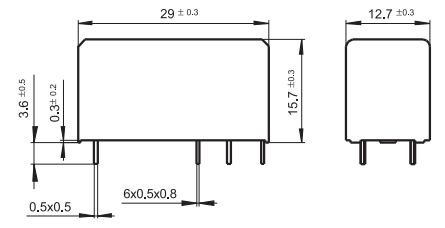

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
|
3.5mm Pinning |
5mm Pinning |
 |
 |
|
NO type NC type NO/NC type |
|
|
3.5/5mm 1 pole 12A |
 |
|
5mm 1 pole 16A |
 |
|
5mm 2 poles 8A |
 |
|
3.5/5mm 1 pole 12A |
5mm 1 pole 12A |
 |
 |
| 5mm 1 pole 16A | 5mm 2 poles 8A |
 |
 |
Remark:
1) In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm; outline dimension﹥1mm and ≤5mm, Tolerance should be±0.3mm; outline dimension﹥5mm, tolerance should be ±0.4mm.
