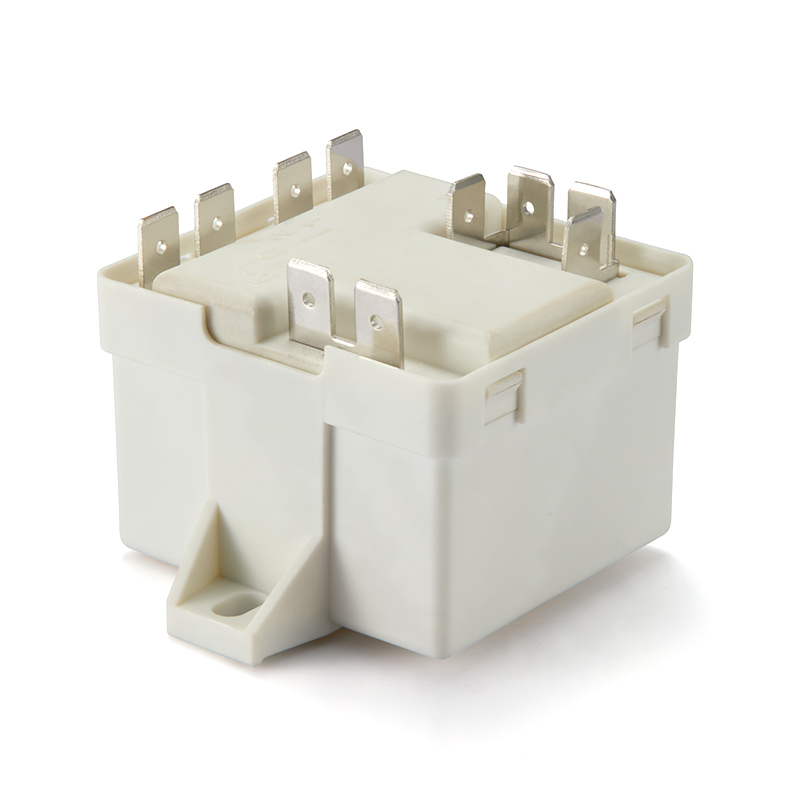

JR93 Relay
  • JR93 Relay
HVAC Relay

JR93 Relay

The JR93 voltage start relay is designed for single-phase motors requiring high starting torque, and can be used with both start and run capacitors (CSA and CSIR configurations). It is widely applied in air conditioners, commercial refrigeration, steam pumps and other industries.

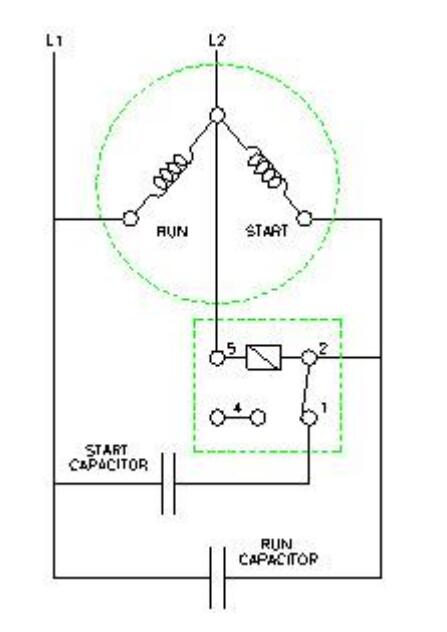

A voltage from the motor’s starting winding is applied across the coil of the JR93 voltage start relay. When this voltage rises to a certain value (pick-up voltage), the contacts open, disconnecting the start capacitor. The relay remains energized until the voltage across the starting winding disappears or drops below its drop-out voltage.

Contact Us
PREV：JR97 High-Power Switching Relay
NEXT：JR96 2-Pole Switching Relay for HVAC

  • General Characteristics

    Item

    Specification

    Contact ratings:



    Insulation class:

    Class B (130℃)

    Standard contacts:

    16A (continuous switching), 400V, cosφ 0.85

    35A(intermittent breaking only), 400V, cosφ 0.85

    High-capacity contacts:

    50A (intermittent breaking only), 400V, cosφ 0.85

    Cycle life:



    Standard contacts:

    200,000 operations (35A, 400VAC, breaking only)

    500,000 operations (16A, 400VAC)

    High-capacity contacts:

    100,000 operations (50A, 400VAC, breaking only)

    Terminal connection:

    Quick-connect terminals and M3.5 screws


    Product Model Explanation

    Product Name

    JR93 Standard capacity contacts

    JR93H: High-capacity contacts

    Coil Code (Ref. List)

    Pick-up & Drop-out Voltage Range (Ref. List)

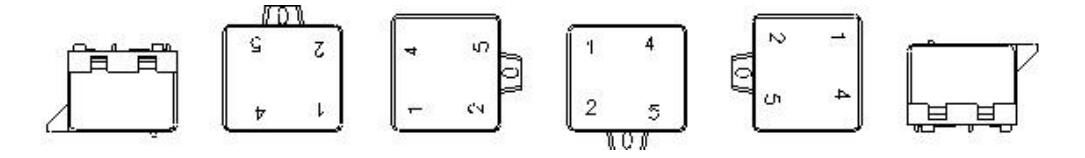

    Mounting Position (Ref. List)

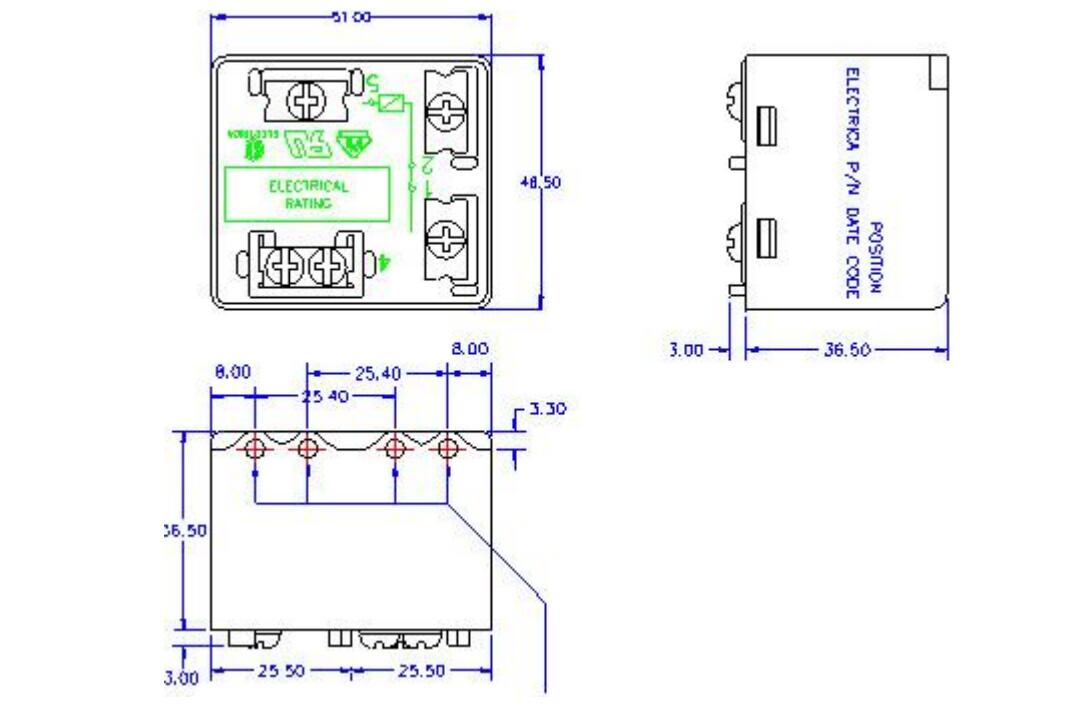

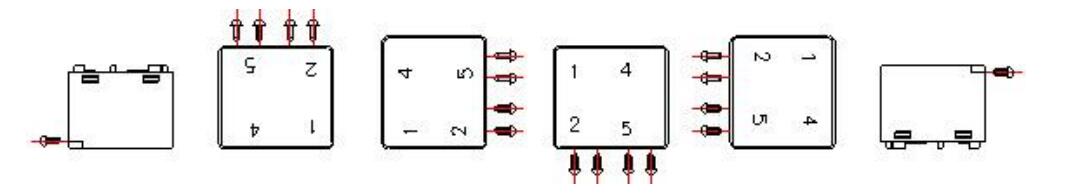

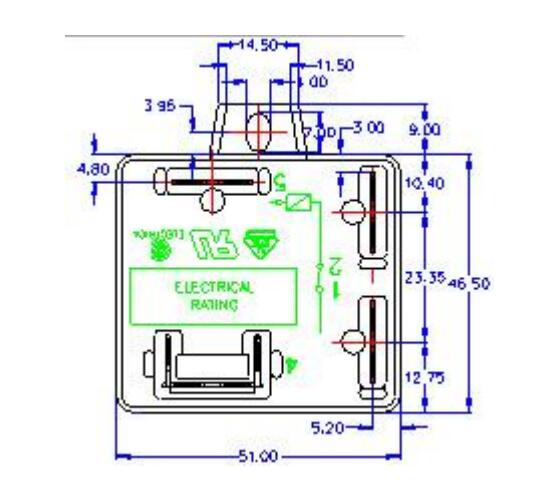

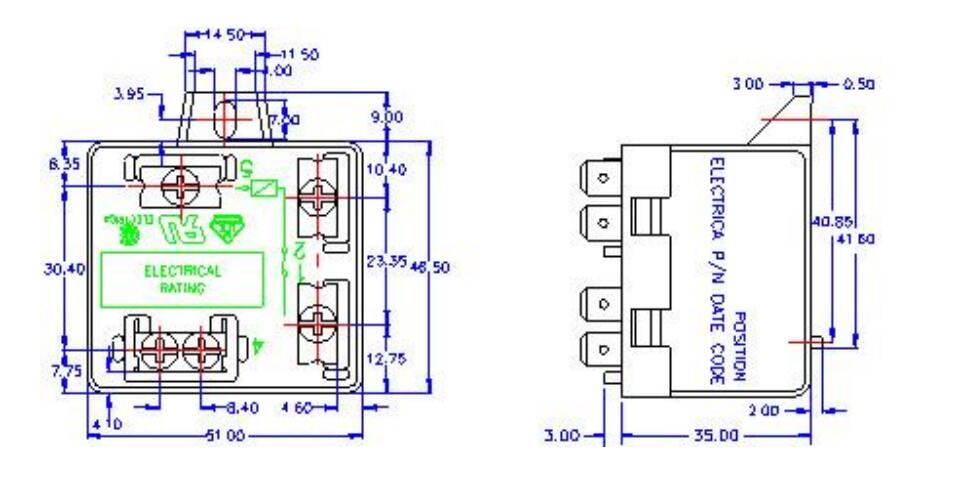

    Terminal Configuration (Ref. Diagram)

    JR93

     H

    4

    M

    3

    D

  • 50 Hz Operating Characteristics (at 40℃ / 25℃)

    Coil code 2 3 4 5 6 7 8 9
    Vmax at 40℃(V) 299 338 378 356 452 151 530 228
    Resistance ±10% at 25℃ (Ω) 5600 7500 10700 10000 13800 1500 19500 3900
    H.P.U P.U. D.O. P.U. D.O. P.U. D.O. P.U. D.O. P.U. D.O. P.U. D.O. P.U. D.O. P.U. D.O.
    A 120-130 111-124 20-45 111-124 35-77
    B 130-140 120-134 20-45 120-134 35-77
    C 150-160 140-153 40-90 130-144 20-45 130-144 35-77
    D 160-170 150-163 40-90 150-163 40-90 140-153 20-45 140-153 35-77
    E 170-180 162-175 40-90 162-175 40-90 149-163 35-77
    F 180-190 171-184 40-90 171-184 40-90 180-195 40-105 157-172 35-77
    G 190-200 180-193 40-90 180-195 40-105 180-195 40-105 189-205 40-105 168-182 35-77
    H 200-220 186-215 40-90 190-215 40-105 195-224 50-110 186-214 60-133 178-192 35-77
    I 220-240 205-234 40-105 208-239 50-110 204-233 50-110 204-233 60-133 183-213 35-77
    M 260-280 243-271 40-105 239-270 50-110 242-272 50-110 242-272 60-133 239-268 60-135 239-268 75-170
    N 280-300 260-289 50-110 262-290 60-121 262-290 60-133 258-287 60-135 258-287 75-170
    O 300-320 280-310 60-121 280-310 60-133 277-305 60-135 277-305 75-170
    P 320-340 300-328 60-121 300-328 60-154 295-324 60-135 295-324 75-170
    Q 340-360 318-347 60-121 314-342 60-135 314-342 75-180
    R 350-370 323-352 75-180
    S 360-380 332-361 75-180
