JR97 High-Power Switching Relay
  • JR97 High-Power Switching Relay
HVAC Relay

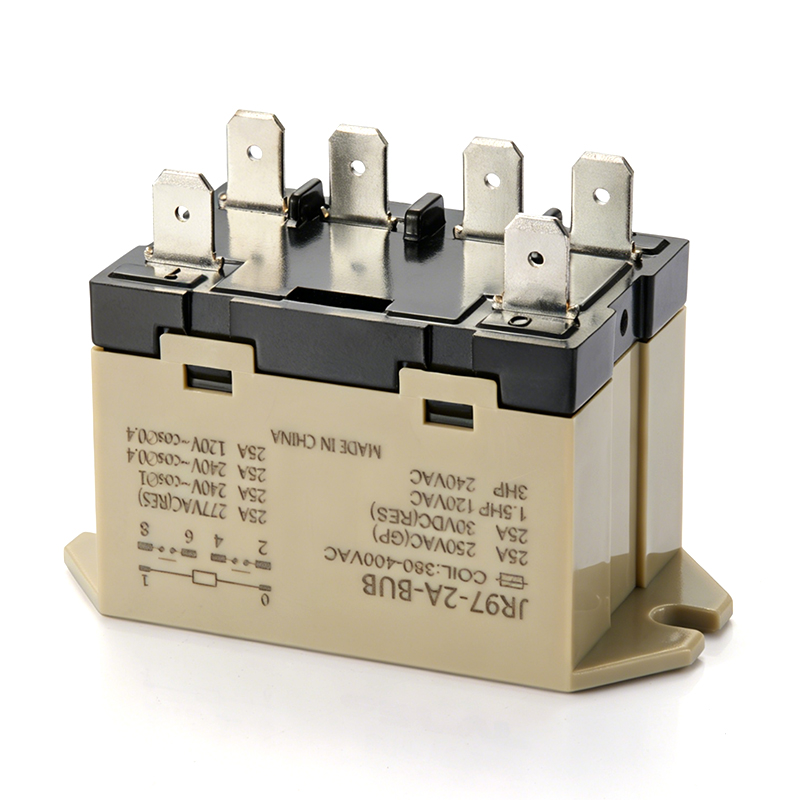

JR97 High-Power Switching Relay

Small high-capacity, high-withstand voltage relay capable of high-power switching

25A power relay

Applications

Switch control for high-inrush loads: air-conditioning compressors, a variety of fluid pumps, etc. Power control for electric tools and a variety of motors Power control for heaters Power control for dryers Lighting control Power control for packaging machines and food processing equipment

  • Low power consumption
  • Rugged design
  • Silver alloy contacts
  • Equipped with manual test button

Power Supply

AC (V): 12, 24, 48, 60, 110, 220, 240 (50Hz) DC (V): 6, 12, 24, 48, 60, 110, 220

  • Output contacts rated at 25A at 250 VAC or 30 VDC
  • DPST output
  • Screw mounting
Contact Us
PREV：No previous article
NEXT：JR93 Relay

  • Technical Data

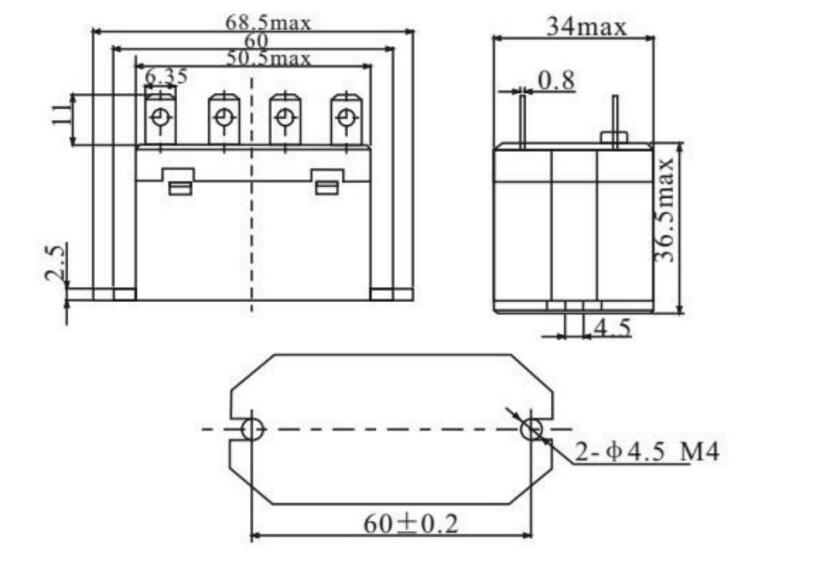

    Dimensions (mm)

     68.5 × 33.5 × 47

    Contact form

     1A, 2A

    Contact rating

     25A at 250 VAC or 30 VDC

    Coil voltage

    AC (V): 6, 12, 24, 48, 60, 110, 220, 240 (50 Hz)

    DC (V): 6, 12, 24, 48, 60, 110, 220

    Coil power

    DC ≤ 1.9 W; AC ≤ 1.7–2.5 VA

    Pick-up voltage

    DC ≤ 75% rated voltage; AC ≤ 80% rated voltage

    Drop-out voltage

    DC ≥ 10% rated voltage; AC ≥ 30% rated voltage

    Contact resistance

    ≤ 50 mΩ

    Insulation resistance

    ≥ 100 MΩ (at DC 500 V)

    Service Life

    Electrical life: 1 × 10⁵ operations

    Mechanical life: 5 × 10⁶ operations

    Dielectric strength

    Between open contacts: 1000 VAC rms

    Between coil and contacts: 1500 VAC rms

    Mounting form

    Welding Ambient temperature: -25 ℃ ~ +55 ℃
