JR96 2-Pole Switching Relay for HVAC
25A switching capability
Multiple mounting positions available
Multiple wiring options
Dust cover enclosure
Suitable for heat pumps, vending machines, fans, heating and air conditioning systems
25A switching capability
Multiple mounting positions available
Multiple wiring options
Dust cover enclosure
Suitable for heat pumps, vending machines, fans, heating and air conditioning systems
Product model and specification
|
Rated voltage VAC |
Pick-Up VAC |
Drop Out VAC |
Coil resistance VACΩ |
Maximum voltage VAC |
| 24 | <20.4 | ≥4.8 | 21x(1±10%) | 28.8 |
| 104/120 | ≤102.0 | ≥24 | 440x(1±10%) | 144 |
| 208/240 | <204.0 | ≥48 | 1600x(1±10%) | 288 |
Product Characteristics
| Contact form | 1A (SPST-NO); 1B (SPST-NC); 1C (SPDT); 2A(DPST-NO); 2B(DPST-NC); 2C(DPDT) |
|
| Contact resistance | ≤100mΩ (24V/1A) | |
| Maximum commutation voltage | 277VAC | |
| Maximum commutation current | 25A | |
| Input power | Holding power | 9.5VA |
| Pick-up power | 21.5VA | |
| Contact rating | 12 FLA, 60 LRA, 15A resistive @ 125VAC; 6FLA, 35 LRA, 15A resistive @ 250/277VAC; 3 FLA, 18 LRA, 12.5A resistive @ 480VAC; 3 FLA, 14 LRA @ 600VAC; |
|
| Mechanical durability | 1X106 | |
| Electrical durability |
2.5x 105 operations, at rated resistive loads. 1.0x 105 operations, at rated inductive loads. |
|
| Insulation resistance | 500MΩ (500VDC) | |
| Dielectric Strength | Between coil and contact | 2500VAC 1min |
| Between disconnecting contacts | 1000VAC 1min | |
| Action time | ≤25 ms | |
| Release time | ≤25 ms | |
| Shock (stability) | 98 m/s² | |
| Vibration | 10Hz to 55Hz, 1.5mm double amplitude | |
| Humidity range | 5%- 85%RH | |
| Temperature range | -40°C - 65°C | |
| Lead form | Quick connect | |
| Weight | About 173.00 g | |
| Packaging method | Dust cover type | |
ORDERING INFORMATION
JR94-10-A-24-XX
|
Type |
Contact Form |
Coil Voltage Form |
Coil voltage |
Special Parameters |
|
JR96 |
10: 1A 11: 1D |
|
AC: 24-240VAC |
None: Standard Product |
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
|
Dimensions |
 |

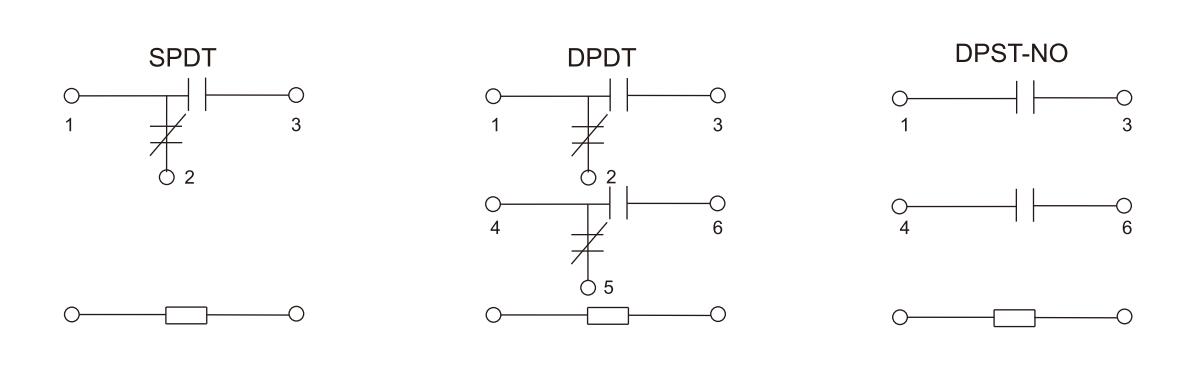

| Wiring diagram |
 |
