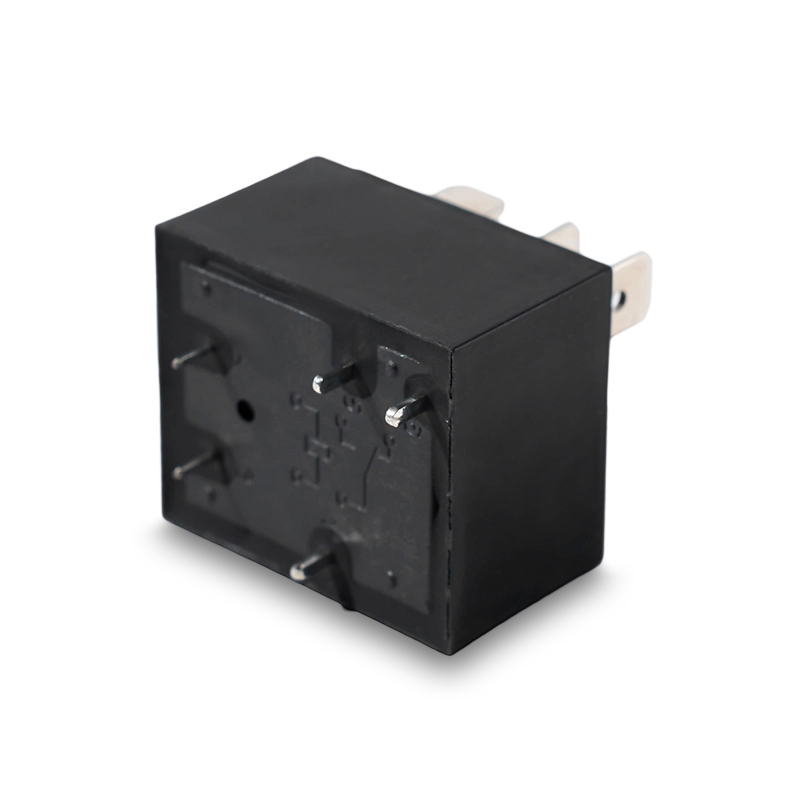

JRT T93 5/12/24V 4/5-Pin High Power Electromagnetic Relay
- 30A / 40A switching capacity
- 2.5KV Dielectric strength between coil and contacts
- 6000VA Max.Switching Power
- 30A / 40A switching capacity
- 2.5KV Dielectric strength between coil and contacts
- 6000VA Max.Switching Power
CONTACT DATA
|
Contact form |
1A/1B/1C |
|
Contact resistance （Initial） |
100mΩ(at 1A 6VDC) |
|
Contact rating-AC Contact rating-DC |
1A: 30A/25A/30VDC 1C: NO 20A/30VDC NC 10A/30VDC |
|
Max. switching voltage |
277VAC/30VDC |
|
Max. carrying power |
7200VA/600W |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
1000MΩ 500VDC |
|
Dielectric strength |
1500VAC 1min. between coil to contacts 1500VAC 1min. between open contacts |
|
Operate time |
15 ms |
|
Release time |
10 ms |
|
Vibration resistance |
10-55Hz, at DA of 1.5mm |
|
Shock resistance |
Functional: 100m/S2 Destructive: 1000m/S2 |
|
Humidity |
35％ ~ 85％RH |
|
Ambient Temp. |
-40℃ ~ +85℃ |
|
Electrical life Mechanical life |
1×105 ops (at rated coil voltage) 1×107 ops |
COIL DATA
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
5 |
3.75 |
0.5 |
186 |
27 |
900 |
|
6 |
4.5 |
0.6 |
150 |
40 |
900 |
|
9 |
6.75 |
0.9 |
101 |
89 |
900 |
|
12 |
9 |
1.2 |
76 |
158 |
900 |
|
18 |
13.5 |
1.8 |
51 |
356 |
900 |
|
24 |
18 |
2.4 |
38 |
634 |
900 |
|
36 |
27 |
3.6 |
25.2 |
1426 |
900 |
|
48 |
36 |
4.8 |
19 |
2534 |
900 |
|
110 |
82.5 |
11.0 |
8.3 |
13310 |
900 |
Notes:
1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRT3-S-1-12-D-M-XX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRT3(30A) JRT5(40A) |
S-Plastic sealed SH- Sealed |
1 |
5-110VDC |
D: 0.9W |
None: NO/NC M: NO B: NC |
Customer special requirement |

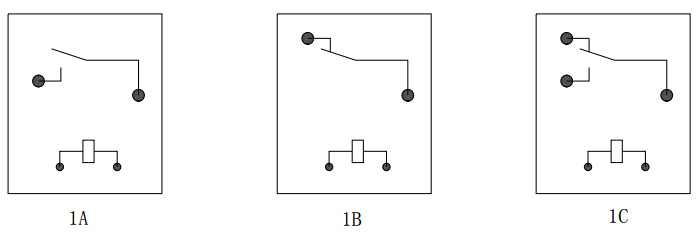

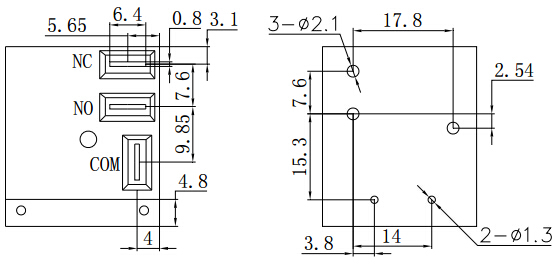

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
Tolerance±0.3
|
|
|
|
 |
 |
|
Remark:
1) In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm; outline dimension﹥1mm and ≤5mm, Tolerance should be±0.3mm; outline dimension﹥5mm, tolerance should be ±0.4mm.
