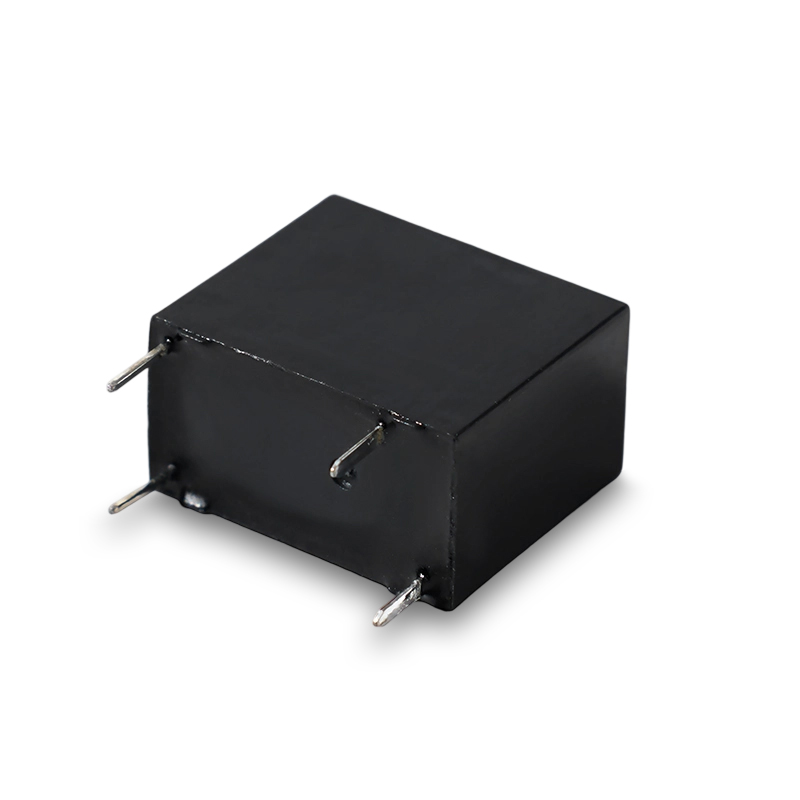

JRA 32F General Purpose Miniature Electromagnetic Relay
- 5A/10A/16A switching capability
- 1 Form A contact arrangement
- 1.0KV Dielectric strength between coil and contacts
- 2500VA Max. Switching Power
- CQC File No.: CQC13002091774
- 5A/10A/16A switching capability
- 1 Form A contact arrangement
- 1.0KV Dielectric strength between coil and contacts
- 2500VA Max. Switching Power
- CQC File No.: CQC13002091774
CONTACT DATA
|
Contact arrangement |
1A |
|
Contact resistance |
100mΩ (at 1A 6VDC) |
|
Contact rating - AC Contact rating - DC |
1A：5A/250VAC 10A/250VAC 16A/250VAC 1A：5A/28VDC 10A/28VDC 16A/28VDC |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
100MΩ 500VDC |
|
Dielectric strength |
Between Coil & contact: 2500VAC,1min Between open contact: 1000VAC,1min |
|
Operate time |
8 ms |
|
Release time |
5 ms |
|
Vibration resistance |
10-55Hz, DA 1.5mm |
|
Shock resistance |
Functional 98 m/s2; Destructive 980 m/s2 |
|
Humidity |
35％ ~ 95％RH |
|
Ambient Temp. |
-40℃ ~ +85℃ |
|
Electrical life Mechanical life |
1×105 ops 1×107 ops |
COIL DATA
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
5 |
3.75 |
0.25 |
90 |
55 |
450 |
|
6 |
4.5 |
0.3 |
75 |
80 |
450 |
|
9 |
6.75 |
0.45 |
50 |
180 |
450 |
|
12 |
9 |
0.6 |
37.5 |
320 |
450 |
|
24 |
18 |
1.2 |
18.8 |
1280 |
450 |
|
5 |
3.75 |
0.25 |
40 |
125 |
200 |
|
6 |
4.5 |
0.3 |
33 |
180 |
200 |
|
9 |
6.75 |
0.45 |
22 |
405 |
200 |
|
12 |
9 |
0.6 |
17.7 |
720 |
200 |
|
24 |
18 |
1.2 |
8.5 |
2880 |
200 |
Notes:
1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRA-S-1-12-D-M-XXX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRA (5A) JRA1 (10A) JRA2(16A) |
S-Plastic sealed SH- Sealed |
1 |
3-24VDC |
D: 0.45W E: 0.2W |
M: NO |
Customer special requirement |

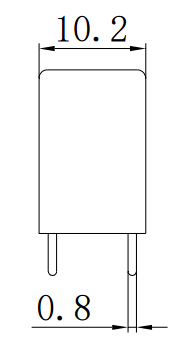

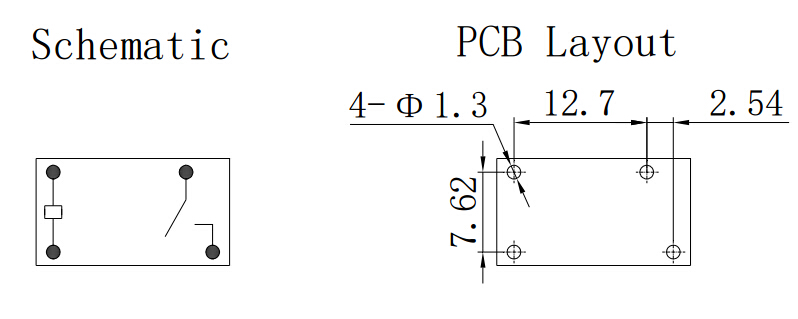

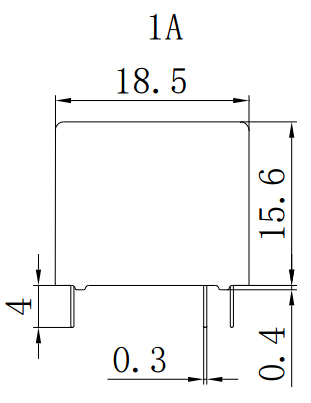

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
 |
 |
 |
|
Remark:
1) In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm; outline dimension﹥1mm and ≤5mm, Tolerance should be±0.3mm; outline dimension﹥5mm, tolerance should be ±0.4mm.
