EspañolIndustrial Control Relay
MK Small Intermediate Power Relay with Socket Base
- Contact 10A switching capacity
- 2C and 3C contact types are available
- Contact 10A switching capacity
- 2C and 3C contact types are available
CONTACT DATA
|
Contact combination |
2C, 3C |
|
Initial contact resistance |
≤100mΩ (1A 6VDC) |
|
Contact load (resistive) |
10A 250VAC/30VDC |
|
Maximum switching current |
10A |
|
Maximum switching voltage |
250VAC/30VDC |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
100MΩ (500VDC) |
|
Medium withstand voltage |
1500VAC, 1min. between contact and coil 500VAC, 1min. Between disconnected contacts |
|
Action time |
≤20 ms |
|
Release time |
≤20 ms |
|
vibration |
10-55Hz, 1.0mm |
|
Shock |
Stability 100m/s 2 ; Strength 1000m/s 2 |
|
humidity |
35% ~ 85% RH |
|
Temperature range |
-25℃ ~ +55℃ |
|
life - Electrical - Mechanical |
1×10 5 times 1×10 7 times |
Coil Specifications 23℃
|
Rated voltage VDC |
Pull-in voltage VDC |
Release voltage VDC |
Maximum voltage VDC |
Coil resistance (Ω±10%) |
|
6 |
≤4.8 |
≥0.6 |
6.6 |
twenty two |
|
12 |
≤9.6 |
≥1.2 |
13.2 |
80 |
|
twenty four |
≤19.2 |
≥2.4 |
26.4 |
360 |
|
36 |
≤28.8 |
≥3.6 |
39.6 |
840 |
|
48 |
≤38.4 |
≥4.8 |
52.8 |
1440 |
|
110 |
≤88.0 |
≥11.0 |
121.0 |
7560 |
|
127 |
≤101.6 |
≥12.7 |
139.7 |
10100 |
|
220 |
≤176 |
≥22 |
242.0 |
29000 |
|
Rated voltage VAC |
Pull-in voltage VAC |
Release voltage VAC |
Maximum voltage VAC |
Coil resistance (Ω±10%) |
|
6 |
≤4.8 |
≥1.2 |
6.6 |
7 |
|
12 |
≤9.6 |
≥2.4 |
13.2 |
19 |
|
twenty four |
≤19.2 |
≥4.8 |
26.4 |
80 |
|
36 |
≤28.8 |
≥7.2 |
39.6 |
200 |
|
48 |
≤38.4 |
≥9.6 |
52.8 |
400 |
|
110 |
≤88.0 |
≥22.0 |
121.0 |
1600 |
|
127 |
≤101.6 |
≥25.4 |
121.0 |
2600 |
|
220 |
≤176.0 |
≥44.0 |
242.0 |
7300 |
|
380 |
≤304.0 |
≥76.0 |
418 |
21000 |
Remark:
(1) The above values are initial values;
(2) The above values are all initial values at 50Hz. If you need to use 60Hz, please specify.
(3) Maximum voltage refers to the maximum voltage that the relay coil can withstand in a short period of time.
ORDERING INFORMATION
JRK-XXXX
|
Series Name |
Number of contact groups |
Coil voltage |
Coil voltage properties |
Special parameters |
|
JRK |
2: 2 groups 3: 3 groups |
DC:6-220VDC AC:6-380VAC |
D: DC A: Communication |
None: Standard Letters or numbers: Special requirements |
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
|

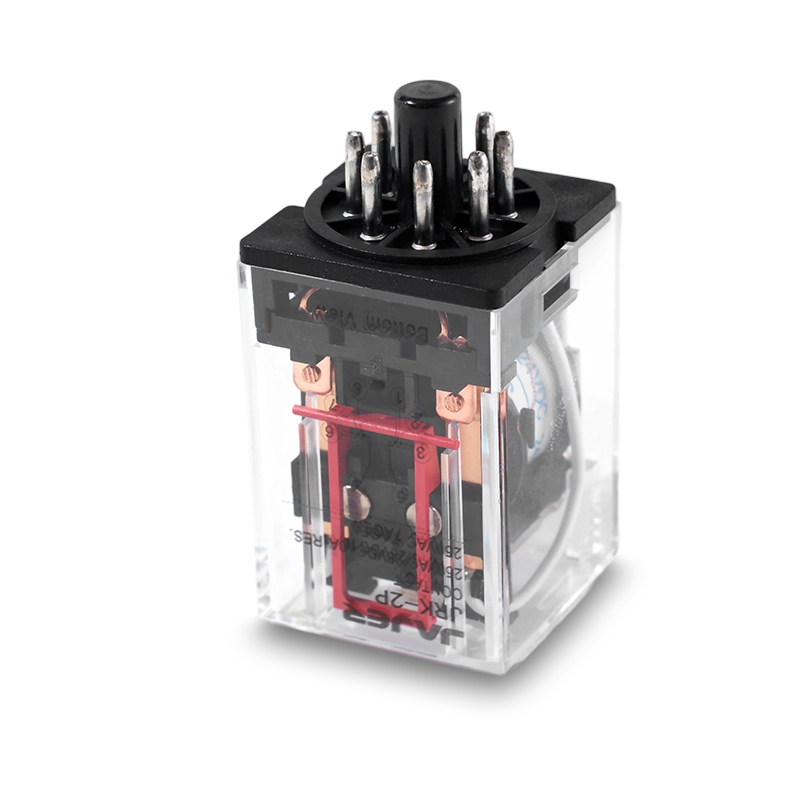

Appearance |
|
|

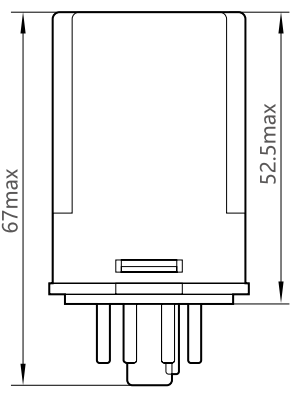

JRK-2 |
JRK-3 |
  |
  |
|
Wiring Diagram |
|
|
JRK-2 |
JRK-3 |
 |
 |
Remark:
(1) The product dimensions do not have dimensional tolerances. When the dimensions are <1mm, the tolerance is ±0.2mm; when the dimensions are between (1~5)mm, the tolerance is ±0.3mm; when the dimensions are >5mm, the tolerance is ±0.4mm;
(2) The tolerance of the mounting hole size not specified is ±0.1mm.
