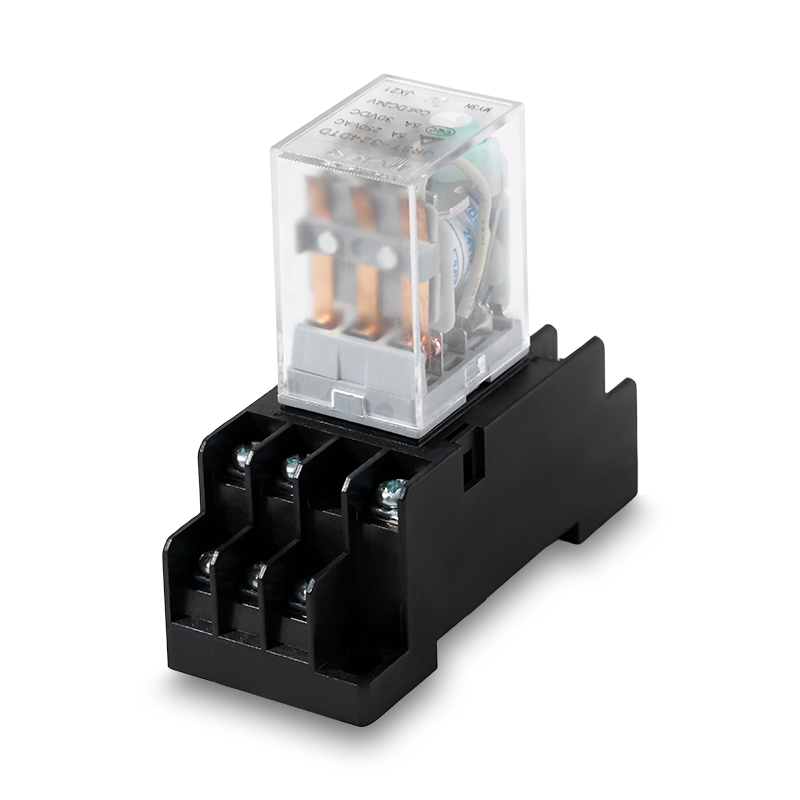

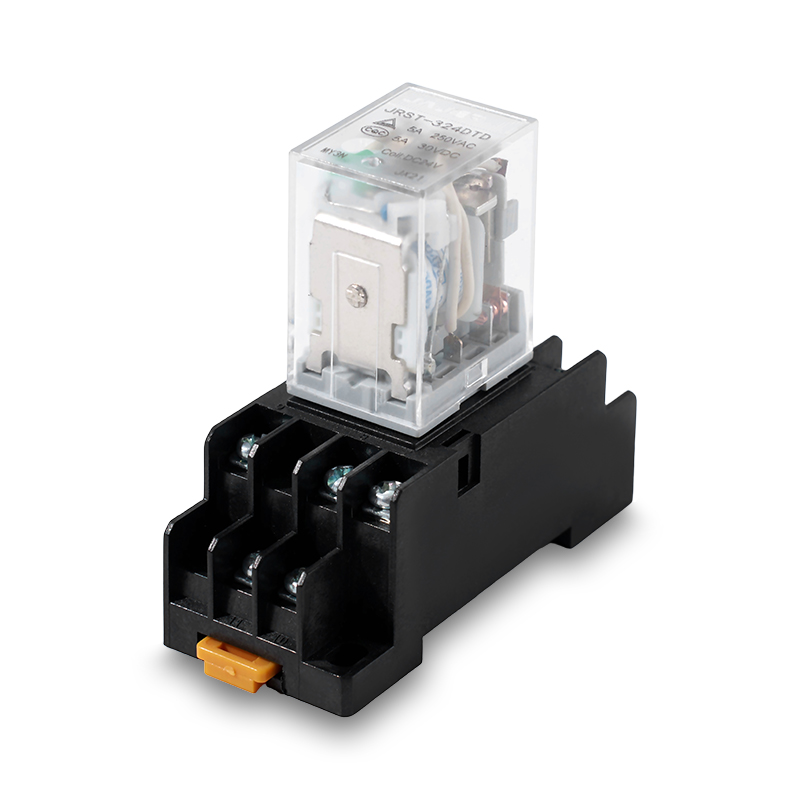

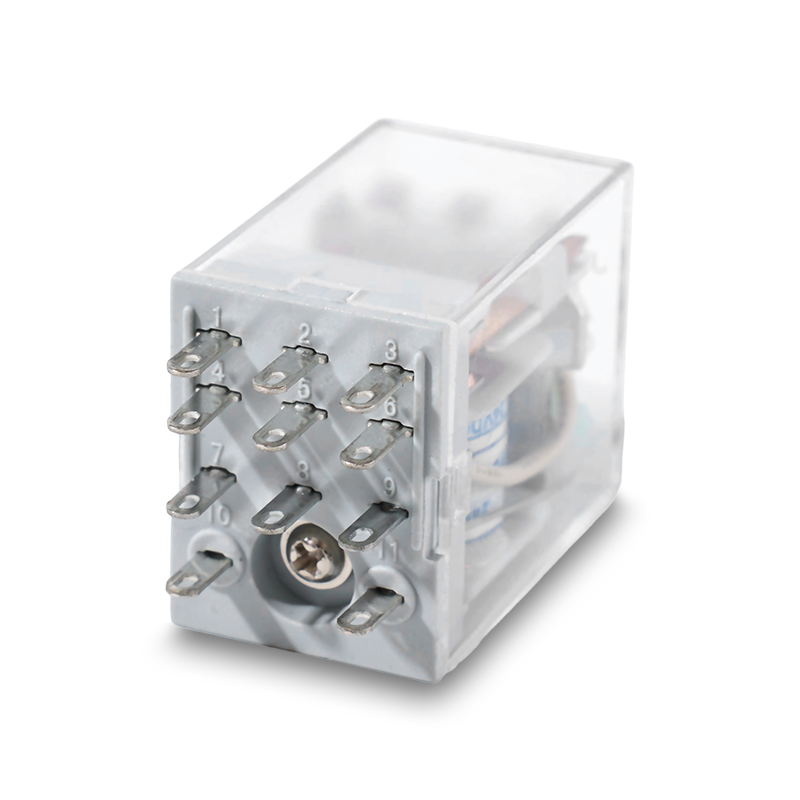

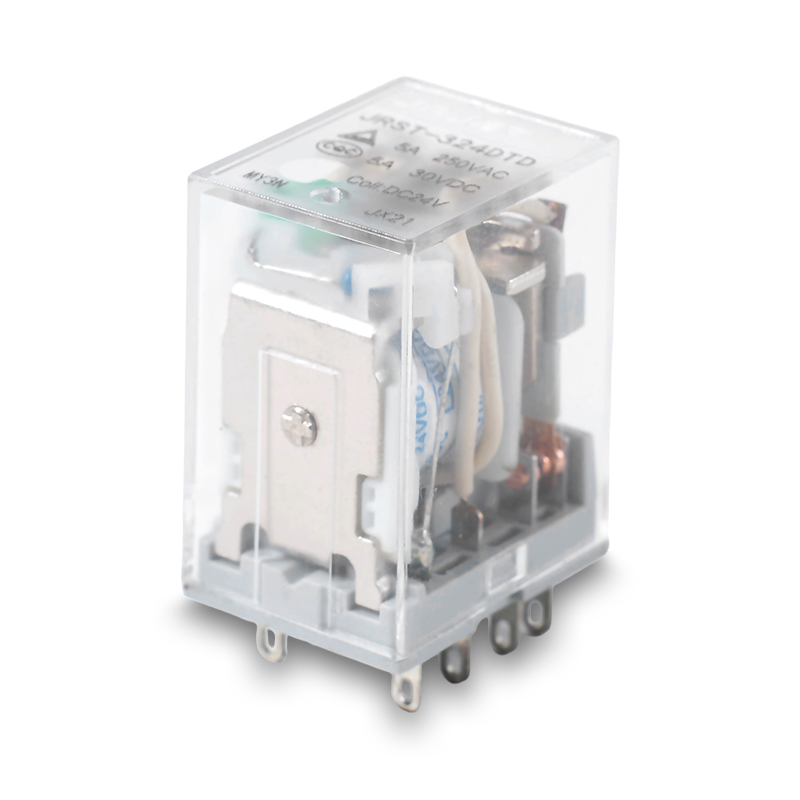

JRST-3C MY3N HH53P Miniature 11-Pin Intermediate Relay
- 5A switching capacity
- 4C, 3C, and 2C configuration
- With various terminal types
- TUV approval for 3C: R50295777
- 5A switching capacity
- 4C, 3C, and 2C configuration
- With various terminal types
- TUV approval for 3C: R50295777
CONTACT DATA
|
Contact form |
2C, 3C&4C |
|
Contact resistance (Initial) |
100mΩ (1A 6VDC) |
|
Contact rating |
5A 240VAC/30VDC |
|
Switching capacity |
2C: 150W/1100VA 3C: 210W/1540VA 4C: 90W/660VA: 150W/1100VA |
|
Switching current |
5A |
|
Switching voltage |
250VAC/30VDC |
|
Contact material |
Ag Alloy |
CHARACTERISTICS
|
Insulation resistance |
500MΩ 500VDC |
|
Dielectric strength |
1000VAC,1min.between coil to contacts 1500VAC,1min. between open contacts |
|
Operate time |
25 ms |
|
Release time |
25 ms |
|
Vibration resistance |
10-55Hz, 1.5mm |
|
Shock resistance |
Malfuntion:100 m/s2 |
|
Humidity |
35％ ~ 95％RH |
|
Ambient temp. |
-40℃ ~ +70℃ |
|
Electrical life Mechanical life |
1×105 operations 1×107 operations |
COIL DATA
|
Rated voltage (VDC) |
Pick-up voltage VDC (Max.) |
Drop-out voltage VDC (Min.) |
Rated current (mA±10％) |
Coil resistance (Ω±10％) |
Power consumption(mW) |
|
12 |
9 |
1.2 |
75 |
160 |
900 |
|
18 |
13.5 |
1.8 |
50 |
360 |
900 |
|
24 |
18 |
2.4 |
37.5 |
650 |
900 |
|
36 |
27 |
3.6 |
25 |
1440 |
900 |
|
48 |
36 |
4.8 |
18.8 |
2600 |
900 |
|
110 |
82.5 |
11 |
7.8 |
13400 |
900 |
|
220 |
165 |
22 |
4.5 |
54000 |
900 |
|
Rated voltage (VAC) |
Pick-up voltage VDC (Max.) |
Drop-out voltage VDC (Min.) |
Rated current (mA±10％) |
Coil resistance (Ω±10％) |
Power consumption(VA) |
|
12 |
9.6 |
3.6 |
100 |
46 |
1.2 |
|
18 |
14.4 |
5.4 |
66 |
95 |
1.2 |
|
24 |
19.2 |
7.2 |
50 |
184 |
1.2 |
|
36 |
28.8 |
10.8 |
33 |
370 |
1.2 |
|
48 |
38.4 |
14.4 |
25 |
735 |
1.2 |
|
110 |
88 |
33 |
11 |
3750 |
1.2 |
|
220 |
176 |
66 |
5.5 |
14400 |
1.2 |
ORDERING INFORMATION
JRST-2-24-D-T-D-X
|
Model No. |
Contact form |
Coil voltage |
Coil source |
Terminal form |
Model type |
Special code |
|
JRST |
2: 2C 3: 3C 4: 4C |
5-220VDC 5-220VAC |
D: DC A: AC |
P: PCB T: outlet F: flange |
None: D: LED lamp |
None: Standard Special code |
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
Tolerance：±0.3
|
JRST-2C/3C(T) JRST-2C/3C(P) JRST-4C(T) |
|
 |
|
|
JRST-4C(T) |
JRST-4C(F) |
 |
 |
 |
|
