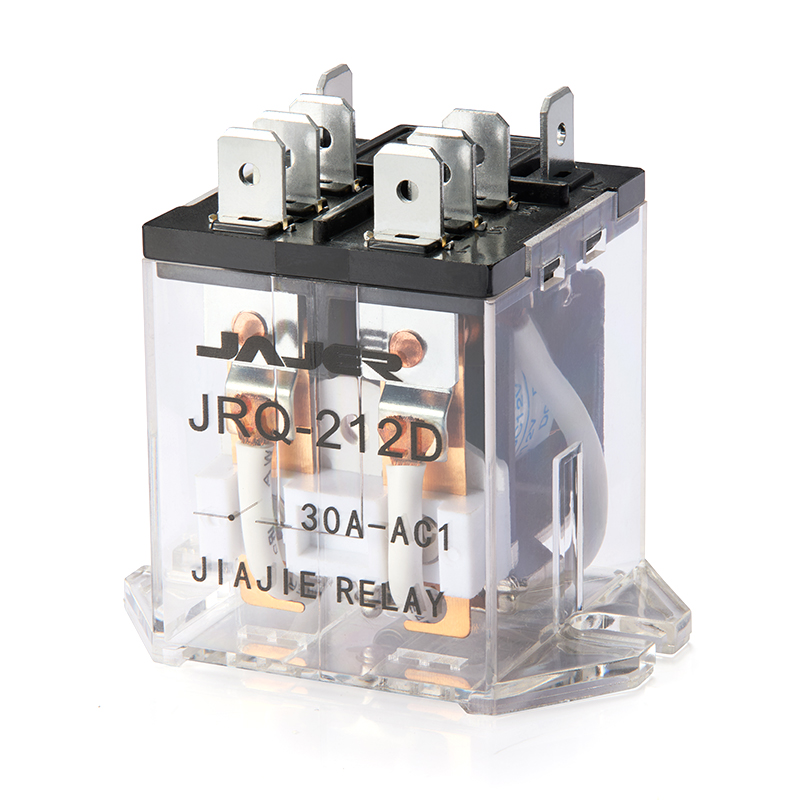

JRQ Industrial Control Relay
- 30A switching capability
- With Opening and Dust-Proof Type
- 30A switching capability
- With Opening and Dust-Proof Type
CONTACT DATA
|
Contact arrangement |
1C/2C |
|
Contact resistance |
100mΩ (at 1A 6VDC) |
|
Contact rating
|
30A/250VAC 30A/28VDC
|
|
Contact material |
AgCdO |
CHARACTERISTICS
|
Insulation resistance |
500MΩ 500VDC |
|
Dielectric strength |
Between Coil & contact: 2000VAC, 1min Between open contact: 1200VAC, 1min |
|
Operate time |
20 ms |
|
Release time |
15 ms |
|
Terminal Type |
10-55Hz, DA 1mm |
COIL DATA
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Coil resistance (Ω±10％) |
Power (W) |
|
6 |
4.2 |
0.6 |
15 |
2.5 |
|
12 |
8.4 |
0.2 |
60 |
2.5 |
|
24 |
16.8 |
2.4 |
280 |
2.5 |
|
48 |
33.6 |
4.8 |
920 |
2.5 |
|
60 |
42 |
6 |
1400 |
2.5 |
|
110 |
88 |
11 |
4840 |
2.5 |
COIL DATA
|
Rated voltage (VAC) |
Pick-up Voltage VAC (Max.) |
Drop-out Voltage VAC (Min.) |
Coil resistance (Ω±10％) |
Power (VA) |
|
12 |
9.6 |
3.6 |
20 |
4 |
|
24 |
19.2 |
7.2 |
80 |
4 |
|
48 |
38.4 |
14.4 |
320 |
4 |
|
110 |
88 |
36 |
1700 |
4 |
|
220 |
176 |
72 |
6700 |
4 |
|
240 |
176 |
72 |
8060 |
4 |
Notes: 1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For the sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRQ - 220VAC 2C
|
Type |
Coil voltage |
Contact arrangement |
|
JRQ JQX-30F |
12~240VAC 5~220VDC
|
1Z 2Z |
OUTLINE DIMENSIONS, WIRING DIAGRAM, AND PC BOARD LAYOUT (Unit: mm)

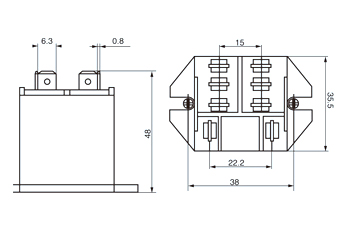

| Outline Dimensions |
Layout (Bottom view) |

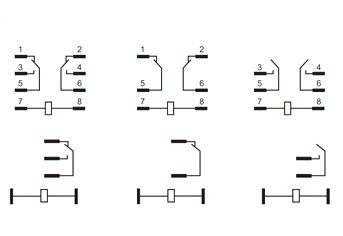

Wiring Diagram (Bottom View) |
 |
 |
|
