EspañolIndustrial Control Relay

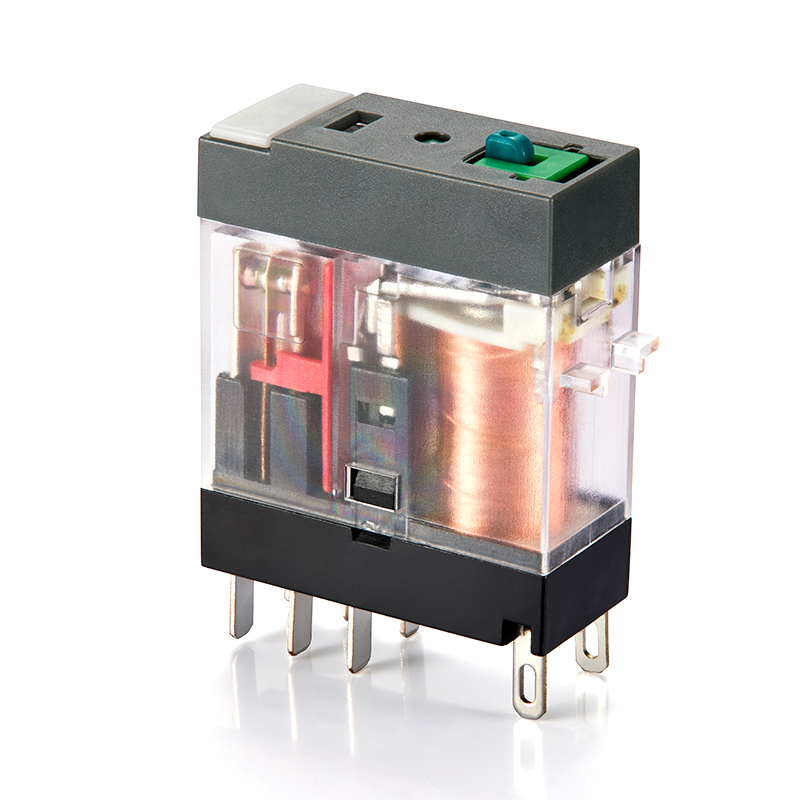

JRFK Relay
- 8A/12A switching capability
- 1A/1C, 2A/2C configurations
- 5.0KV Dielectric strength between coil and contacts
- 2500VA/1250VA Max. Switching Power
- 8A/12A switching capability
- 1A/1C, 2A/2C configurations
- 5.0KV Dielectric strength between coil and contacts
- 2500VA/1250VA Max. Switching Power
CONTACT DATA
|
Contact arrangement |
1A/1C,2A/2C |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact load |
1C：12A/250VAC/30VDC 1A：10A/250VAC/30VDC 2A：8A/250VAC/30VDC 2C：8A/250VAC/30VDC |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
1000MΩ 500VDC |
|
Dielectric strength |
Between Coil & contact: 5500VAC, 1min. Between open contact: 1000VAC, 1min. |
|
Operate time |
20 ms |
|
Release time |
10 ms |
|
Vibration resistance |
10-55Hz, DA 1.0mm |
|
Shock resistance |
Functional: 98m/s2; Destructive: 980m/s2 |
|
Humidity |
40％ ~ 70％RH |
|
Ambient Temp |
-40℃ ~ +85℃ |
|
- Electrical life - Mechanical life |
1×105 ops AC:2×107 ops DC: 5×107 ops |
COIL DATA
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Coil resistance (Ω±10％) |
Power (mW) |
|
6 |
≤72% |
≥12% |
68 |
530 |
|
12 |
≤72% |
≥12% |
270 |
530 |
|
24 |
≤72% |
≥12% |
1100 |
530 |
|
36 |
≤72% |
≥12% |
2440 |
530 |
|
48 |
≤72% |
≥12% |
4400 |
530 |
|
110 |
≤72% |
≥12% |
22800 |
530 |
COIL DATA
|
Rated voltage (VAC) |
Pick-up Voltage VAC (Max.) |
Drop-out Voltage VAC (Min.) |
Coil resistance (Ω±10％) |
Power (VA) |
|
6 |
≤75% |
≥35% |
15 |
0.9 |
|
12 |
≤75% |
≥35% |
60 |
0.9 |
|
24 |
≤75% |
≥35% |
247 |
0.9 |
|
48 |
≤75% |
≥35% |
1100 |
0.9 |
|
115 |
≤75% |
≥35% |
6300 |
0.9 |
|
230 |
≤75% |
≥35% |
23500 |
0.9 |
Notes: 1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For the sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRFK - S - 2 12 D M - XX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRFK |
S-Plastic sealed |
2- 2 1-1 |
6VDC-110VDC 6VAC-230VAC |
D: DC A: AC |
None: NO/NC M: NO |
Customer special requirement |

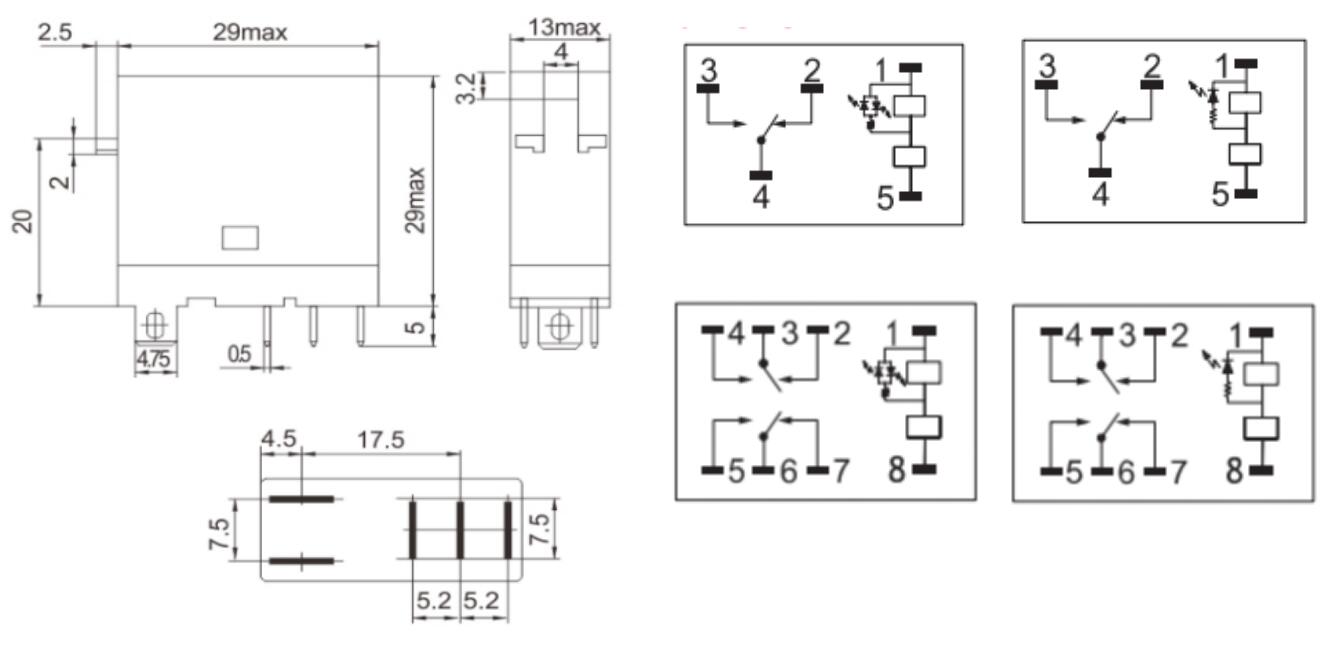

OUTLINE DIMENSIONS, WIRING DIAGRAM, AND PC BOARD LAYOUT (Unit: mm)
Bottom View
Tolerance±0.1
