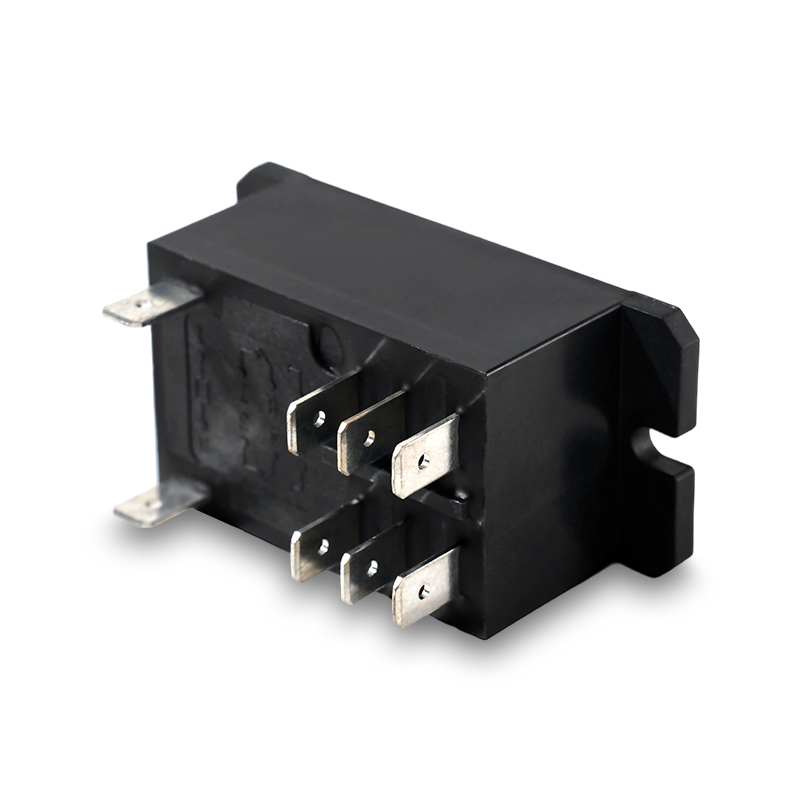

JR92 8-Pin HVAC Air Conditioner Control Relay
- 30A switching capacity
- 2 Form A/C configuration
- Creepage distance 8MM
- 30A switching capacity
- 2 Form A/C configuration
- Creepage distance 8MM
CONTACT DATA
|
Contact form |
2A / 2C |
|
Contact resistance (Initial) |
≤100mΩ(at 1A 6VDC) |
|
Contact load (Resistive) |
NO: 30A/250VAC 30A/ 277VAC NC: 3A /250VAC 3A/ 277VAC |
|
Switching current |
30A |
|
Switching voltage |
277VAC/28VDC |
|
Contact material |
Silver Alloy |
|
Insulation Resistance |
≥1000MΩ 500VDC |
CHARACTERISTICS
|
Dielectric strength |
4000vac 1min. between coil to contacts 1500vac 1min. between open contacts 1500vac 1min. between contact groups |
|
Operate time |
≤25ms |
|
Release time |
≤25ms |
|
Vibration resistance |
10-55Hz, 1.5mm |
|
Shock resistance |
Stability 200m/s2; Strength1000m/s2 |
|
Humidity |
5％ ~ 85％RH |
|
Ambient Temp. |
AC coil: -40℃ ~ +65℃ DC coil: -40℃ ~ +85℃ |
|
Electrical life Mechanical life |
1×105 ops 1×107 ops |
COIL DATA (VDC)
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Max working Voltage (VDC) |
Coil resistance (Ω±10％) |
Power (W) |
|
5 |
≤3.5 |
≥0.5 |
5.5 |
15 |
1.7 |
|
6 |
≤4.5 |
≥0.6 |
6.6 |
21 |
1.7 |
|
12 |
≤9.6 |
≥1.2 |
13.2 |
85 |
1.7 |
|
24 |
≤19.2 |
≥2.4 |
26.4 |
340 |
1.7 |
|
48 |
≤36 |
≥4.8 |
52.8 |
1355 |
1.7 |
|
110 |
≤82.5 |
≥11 |
121 |
7120 |
1.7 |
COIL DATA (VAC) 50Hz
|
Rated voltage (VAC) 50Hz |
Pick-up Voltage VAC (Max.) |
Drop-out Voltage VAC (Min.) |
Max working Voltage (VDC) |
Coil resistance (Ω±10％) |
Power (VA) |
|
24A5 |
≤19.2 |
≥4.8 |
26.4 |
45 |
4.0 |
|
120A5 |
≤96 |
≥24 |
132 |
1125 |
4.0 |
|
208A5 |
≤166.4 |
≥41.6 |
229 |
3278 |
4.0 |
|
220A5 |
≤176 |
≥44 |
242 |
3800 |
4.0 |
|
240A5 |
≤192 |
≥48 |
264 |
4500 |
4.0 |
|
277A5 |
≤221.6 |
≥55.4 |
305 |
5960 |
4.0 |
COIL DATA (VAC) 60Hz
|
Rated voltage (VAC) 60Hz |
Pick-up Voltage VAC (Max.) |
Drop-out Voltage VAC (Min.) |
Max working Voltage (VDC) |
Coil resistance (Ω±10％) |
Power (VA) |
|
24A6 |
≤19.2 |
≥4.8 |
26.4 |
35.7 |
4.0 |
|
120A6 |
≤96 |
≥24 |
132 |
830 |
4.0 |
|
208A6 |
≤66.4 |
≥41.6 |
229 |
2600 |
4.0 |
|
220A6 |
≤176 |
≥44 |
242 |
2870 |
4.0 |
|
240A6 |
≤192 |
≥48 |
264 |
3800 |
4.0 |
|
277A6 |
≤221.6 |
≥55.4 |
305 |
4700 |
4.0 |
COIL DATA (VAC) 50Hz / 60Hz
|
Rated voltage (VAC) 50Hz/ 60HZ |
Pick-up Voltage VAC (Max.) |
Drop-out Voltage VAC (Min.) |
Max working Voltage (VDC) |
Coil resistance (Ω±10％) |
Power (VA) |
||
|
|
50Hz |
60Hz |
50Hz |
60Hz |
|
|
|
|
120A |
≤88 |
≤96 |
≥22 |
≥24 |
132 |
950 |
4.0 |
|
208A |
≤160 |
≤166.4 |
≥40 |
≥41.6 |
229 |
2841 |
4.0 |
|
240A |
≤176 |
≤192 |
≥44 |
≥48 |
264 |
4370 |
4.0 |
|
277A |
≤200 |
≤221.6 |
≥50 |
≥55.4 |
305 |
5485 |
4.0 |
ORDERING INFORMATION
JR92-S-2-24-A-M-F1-X
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil source |
Contact Form |
Terminal type |
Special code |
|
JR92 |
S-Plastic sealed SH- Sealed |
2 poles |
12-24VDC 24-240VAC |
D: DC A5: AC 50Hz A6:AC 60Hz A: AC 50/60Hz |
M: NO None: NO/NC |
None: PCB type F1/F2:Flange type |
None: Standard Type XX: Special |

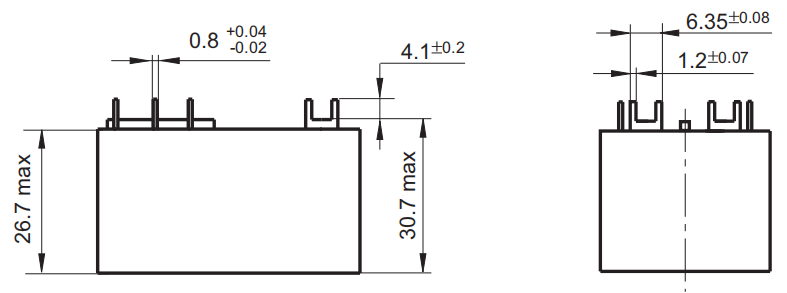

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
|

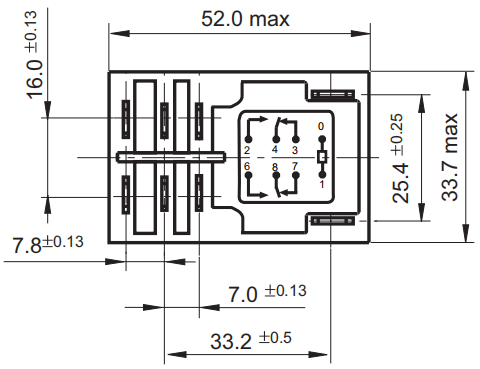

PCB Type |
|
 |
 |

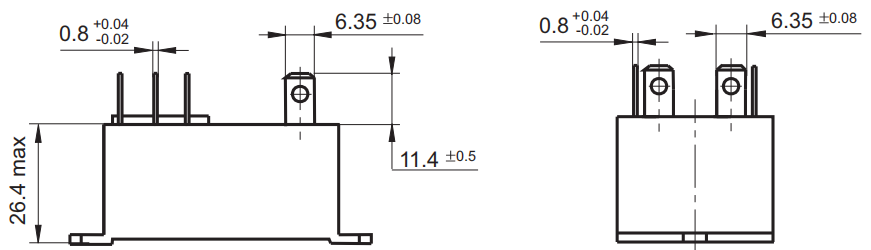

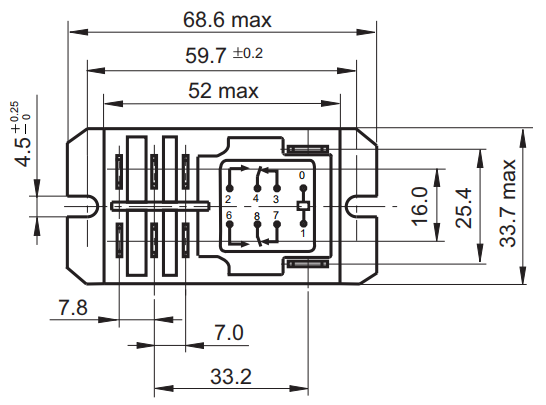

| F1 Socket type |
JRST-E 4C(T) |
 |
 |

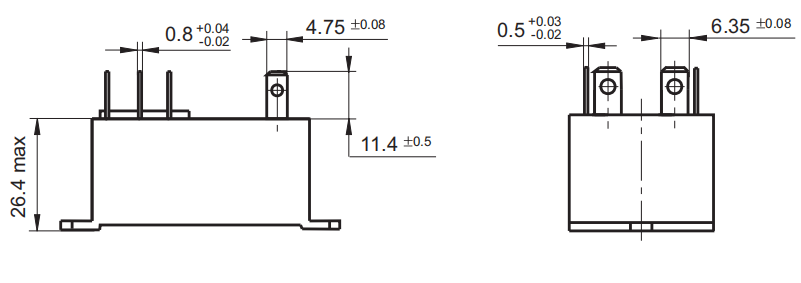

| F2 Socket type | |
 |
 |

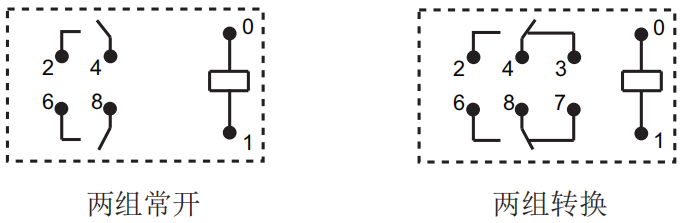

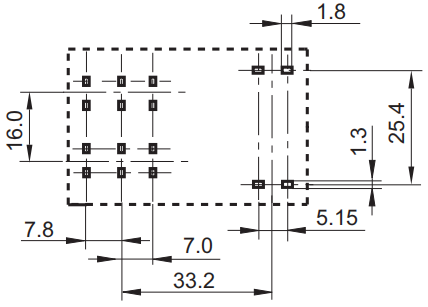

| Install hole dimension | Wiring diagram |
 |
 |
