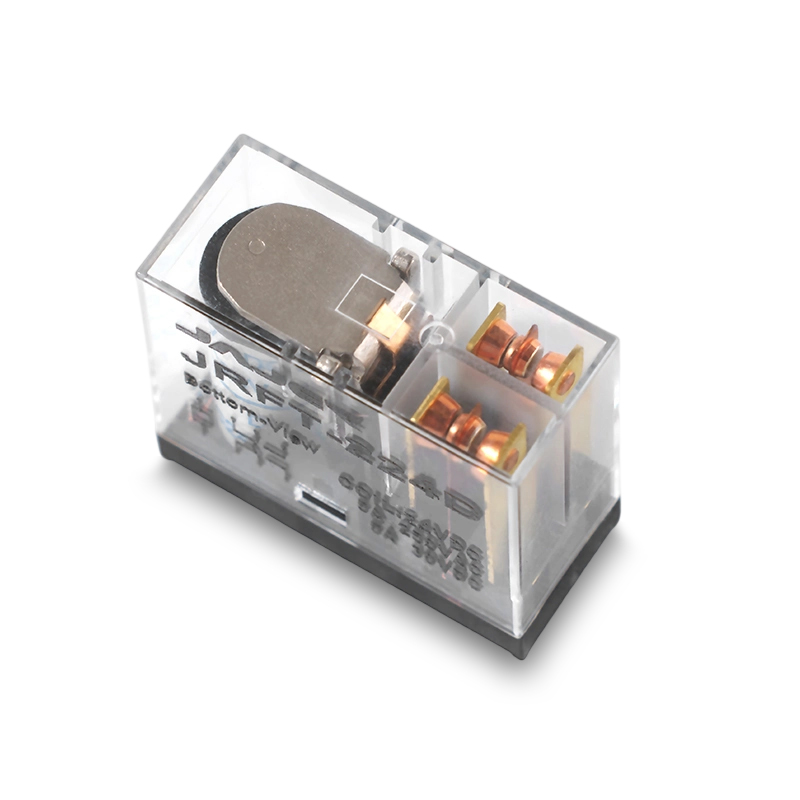

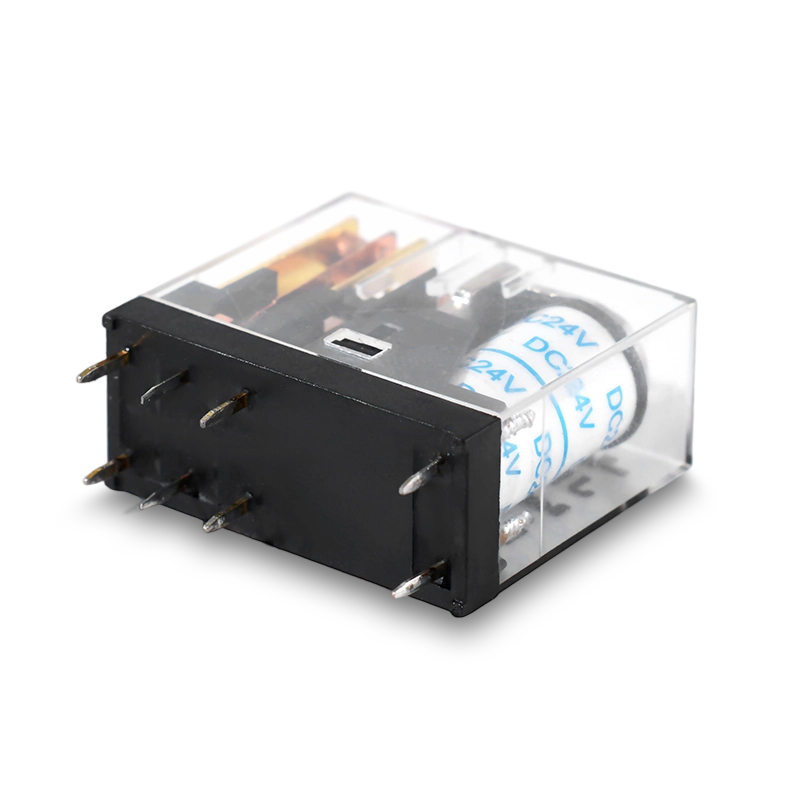

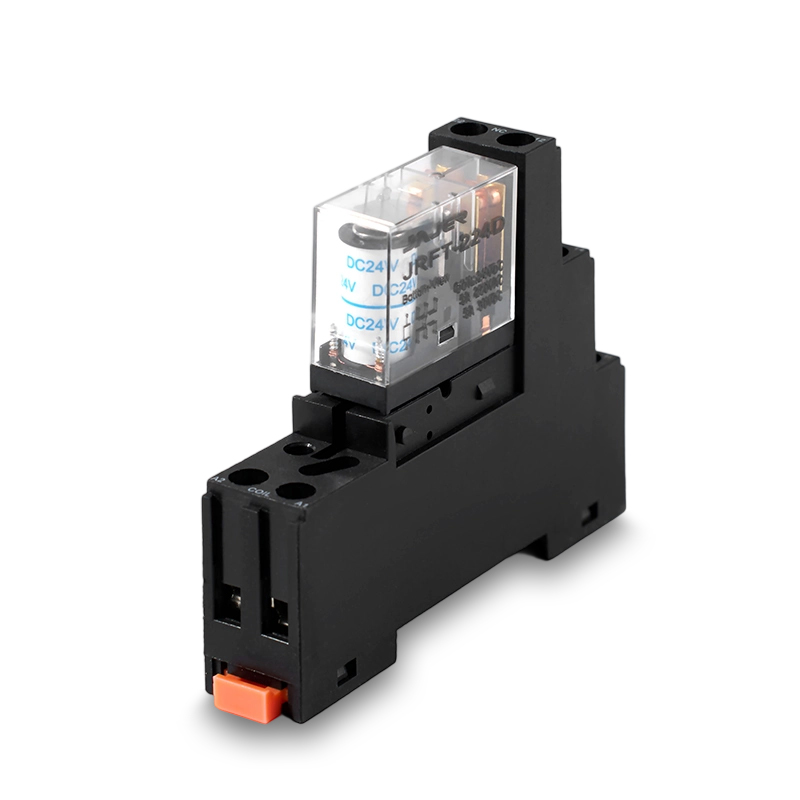

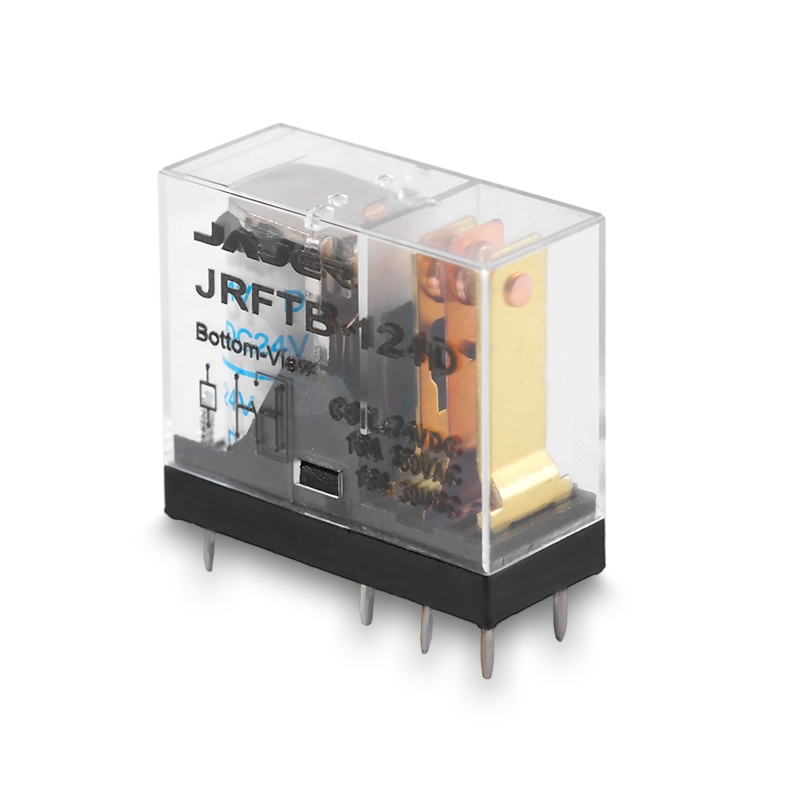

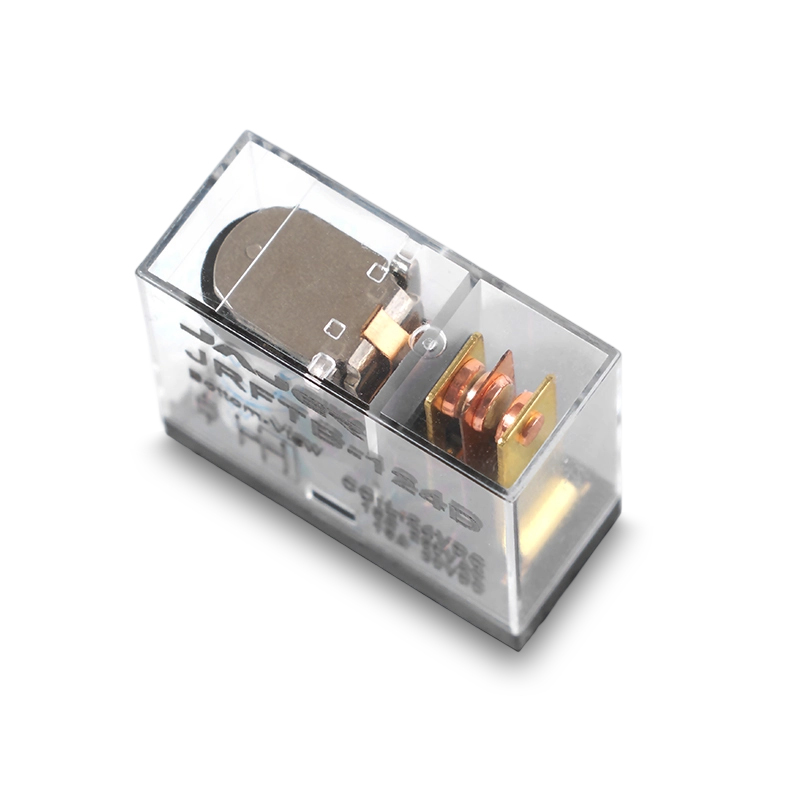

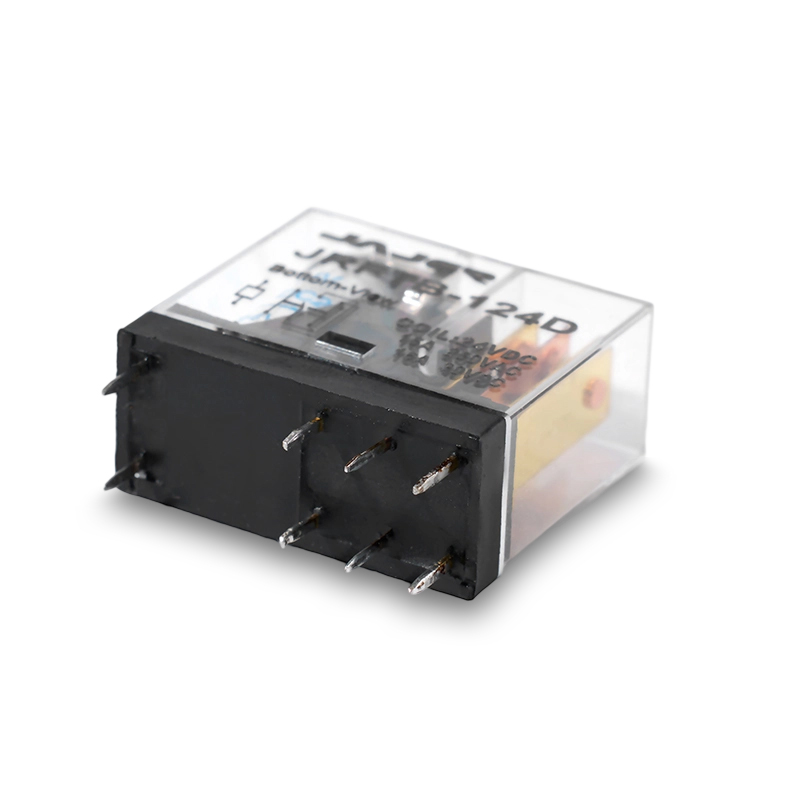

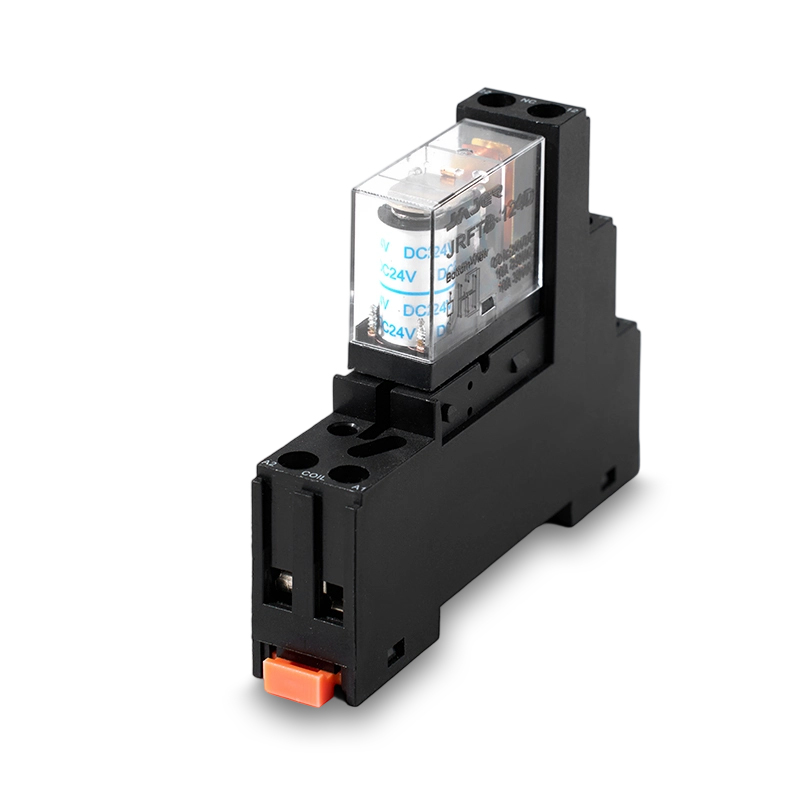

JRFT 8-Pin Power Miniature PCB Relay
- 5A/10A/16A switching capability
- 1A/1C, 2A/2C configurations
- 5.0KV Dielectric strength between coil and contacts
- 2500VA/1250VA Max. Switching Power
- 5A/10A/16A switching capability
- 1A/1C, 2A/2C configurations
- 5.0KV Dielectric strength between coil and contacts
- 2500VA/1250VA Max. Switching Power
CONTACT DATA
|
Contact arrangement |
1A/1C,2A/2C |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact load |
1A：10A/250VAC/30VDC 1C：10A/250VAC/30VDC 1A：10A/250VAC/30VDC 1C：10A/250VAC/30VDC 2A：5A/250VAC/30VDC 2C：5A/250VAC/30VDC |
|
Contact material |
Silver Alloy |
CHARACTERISTICS
|
Insulation resistance |
100MΩ 500VDC |
|
Dielectric strength |
Between Coil & contact: 5000VAC, 1min. Between open contact: 1000VAC, 1min. |
|
Operate time |
20 ms |
|
Release time |
10 ms |
|
Vibration resistance |
10-55Hz, DA 1.5mm |
|
Shock resistance |
Functional: 98m/s2; Destructive: 980m/s2 |
|
Humidity |
35％ ~ 85％RH |
|
Ambient Temp. |
-40℃ ~ +85℃ |
|
- Electrical life - Mechanical life |
1×105 ops 1×107 ops |
COIL DATA
|
Rated voltage (VDC) |
Pick-up Voltage VDC (Max.) |
Drop-out Voltage VDC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (mW) |
|
3 |
2.25 |
0.3 |
180 |
17 |
540 |
|
5 |
3.75 |
0.5 |
108 |
46 |
540 |
|
6 |
4.5 |
0.6 |
90 |
67 |
540 |
|
9 |
6.75 |
0.9 |
60 |
150 |
540 |
|
12 |
9 |
1.2 |
45 |
267 |
540 |
|
18 |
13.5 |
1.8 |
30 |
600 |
540 |
|
24 |
18 |
2.4 |
22.5 |
1067 |
540 |
|
48 |
36 |
4.8 |
11.2 |
4267 |
540 |
COIL DATA
|
Rated voltage (VAC) |
Pick-up Voltage VAC (Max.) |
Drop-out Voltage VAC (Min.) |
Rated Current (mA±10％) |
Coil resistance (Ω±10％) |
Power (VA) |
|
6 |
4.8 |
1.8 |
37.5 |
16 |
1.0 |
|
12 |
9.6 |
3.6 |
19 |
63 |
1.0 |
|
24 |
19.2 |
7.2 |
10 |
240 |
1.0 |
|
48 |
38.4 |
14.4 |
4.4 |
1085 |
1.0 |
|
110 |
88 |
33 |
2.0 |
5500 |
1.0 |
|
220 |
176 |
66 |
1.05 |
21000 |
1.0 |
|
230 |
184 |
69 |
1.0 |
23000 |
1.0 |
Notes:
1) All values unspecified are at room temperature.
2) Only typical loads are listed above. Other load specifications can be available upon request.
3) For sealed type, the vent-hole cover should be excised.
ORDERING INFORMATION
JRFT-S-2-12-D-M-XX
|
Type |
Construction |
Contact arrangement |
Coil voltage |
Coil power |
Contact Form |
Special code |
|
JRFT JRFTA |
S-Plastic sealed |
2- 2 1-1 |
3VDC-48VDC 6VAC-220VAC |
D: DC A: AC |
None: NO/NC M: NO |
Customer special requirement |
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT (Unit: mm)
Tolerance±0.5
Bottom View
Tolerance±0.1
|
2CO 5A |
|||
 |
 |
 |
 |
|
1CO 10A |
|||
 |
 |
 |
 |
Remark:
1) In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm; outline dimension﹥1mm and ≤5mm, Tolerance should be±0.3mm; outline dimension﹥5mm, tolerance should be ±0.4mm.
2) The tolerance without indicating for PCB layout is always ± 0.1mm
